Product Summary
The X5163S8IZT1 is a CPU Supervisor with 16kbit SPI EEPROM. The device combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the X5163S8IZT1 activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The X5163S8IZT1’s low VCC detection circuitry protects the user’s system from low voltage conditions, resetting the system when VCC falls below the minimum VCC trip point.
Parametrics
X5163S8IZT1 absolute maximum ratings: (1)Temperature under bias: –65℃ to +135℃; (2)Storage temperature: –65℃ to +150℃; (3)Voltage on any pin with respect to VSS: –1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10s): 300℃.
Features
X5163S8IZT1 features: (1)Selectable watchdog timer; (2)Low VCC detection and reset assertion; (3)Determine watchdog or low voltage reset with a volatile flag bit; (4)Long battery life with low power consumption; (5)16kbits of EEPROM; (6)Built-in inadvertent write protection; (7)2MHz SPI interface modes (0,0 and 1,1); (8)Minimize EEPROM programming time; (9)2.7V to 5.5V and 4.5V to 5.5V power supply operation; (10)Available packages - 14 Ld TSSOP, 8 Ld SOIC, 8 Ld PDIP; (11)Pb-free plus anneal available (RoHS compliant).

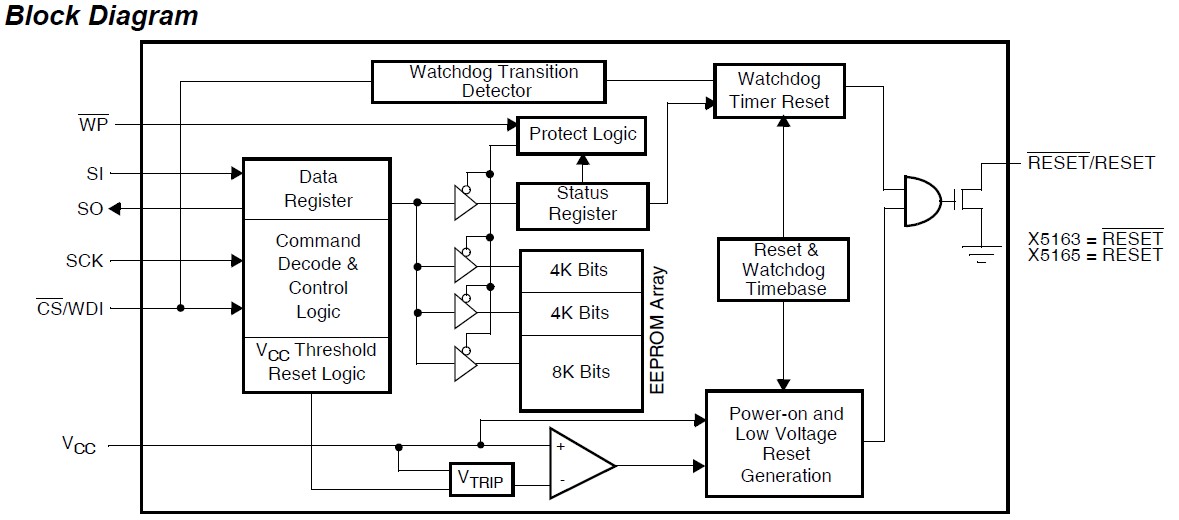

Diagrams
