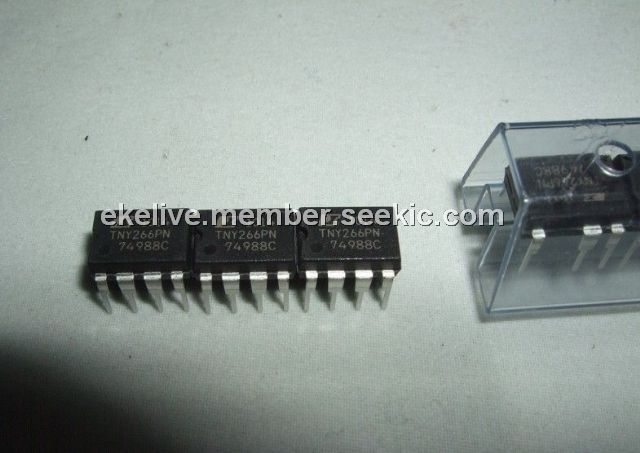

Product Summary
The TNY266PN integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry.
Parametrics
TNY266PN absolute maximum ratings: (1)DRAIN Voltage: -0.3 V to 700 V; (2)DRAIN Peak Current: TNY266:560 mA; (3)EN/UV Voltage: -0.3 V to 9 V; (4)EN/UV Current: 100 mA; (5)BYPASS Voltage: -0.3 V to 9 V; (6)Storage Temperature: -65 ℃ to 150 ℃; (7)Operating Junction Temperature: -40 ℃ to 150 ℃; (8)Lead Temperature: 260 ℃.
Features
TNY266PN features: (1)Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs; (2)Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer; (3)Programmable line under-voltage detect feature prevents power on/off glitches – saves external components; (4)Frequency jittering dramatically reduces EMI (~10 dB) – minimizes EMI filter component costs; (5)132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size; (6)Very tight tolerances and negligible temperature variation on key parameters eases design and lowers cost; (7)Lowest component count switcher solution; (8)Expanded scalable device family for low system cost.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TNY266PN |
Power Integrations |
AC/DC Switching Converters 9.5W 85-265 VAC 15W/230 VAC |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
TNY253 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
TNY253G |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TNY253GN |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
|
|
||||||||||||
|
TNY253GN-TL |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
|
|
||||||||||||
|
TNY253G-TL |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
||||||||||||
|
TNY253P |
Power Integrations |
AC/DC Switching Converters 2W 85-265 VAC 4W 100/115/230 VAC |
Data Sheet |
Negotiable |
|
||||||||||||
