PIC16F676-I/SL

Product Summary

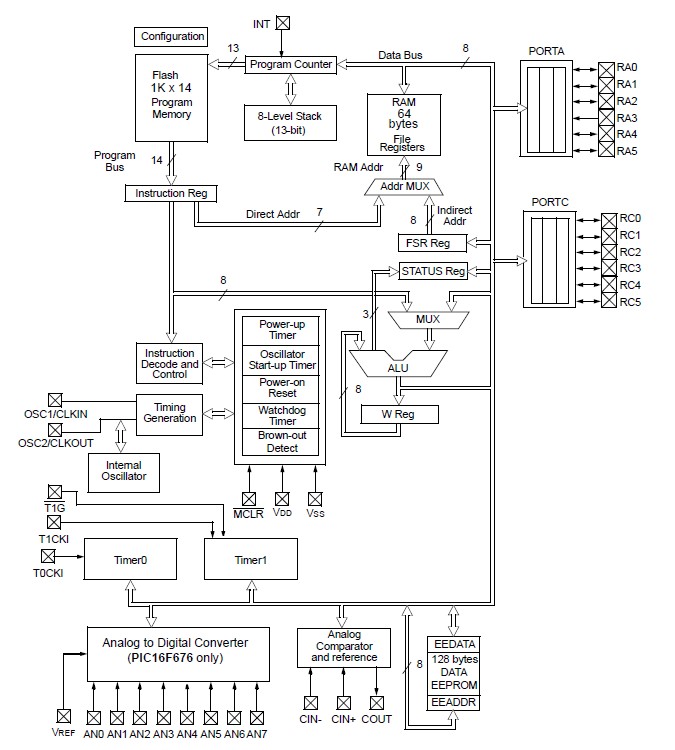

ThePIC16F676-I/SL is a 14-Pin Flash-Based 8-Bit CMOS Microcontroller. ThePIC16F676-I/SL is obtained from the local Microchip Sales Representative or downloaded from the Microchip web site. The Reference Manual should be considered a complementary document to this Data Sheet and is highly recommended reading for a better understanding of the device architecture and operation of the peripheral modules. The PIC16F630/676 is covered by this Data Sheet. The PIC16F676-I/SL has a 10-bit A/D converter. It comes in 14-pin PDIP, SOIC and TSSOP packages. Figure 1-1 shows a block diagram of the PIC16F676-I/SL devices.

Parametrics

PIC16F676-I/SL absolute maximum ratings: (1)Ambient temperature under bias: -40 to +125℃; (2)Storage temperature: -65 to +150℃; (3)Voltage on VDD with respect to VSS: -0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800 mW; (7)Maximum current out of VSS pin: 300 mA; (8)Maximum current into VDD pin: 250 mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): 20 mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): 20 mA; (11)Maximum output current sunk by any I/O pin: 25 mA; (12)Maximum output current sourced by any I/O pin: 25 mA; (13)Maximum current sunk by PORTA and PORTC (combined): 200 mA; (14)Maximum current sourced PORTA and PORTC (combined): 200 mA.

Features

PIC16F676-I/SL features: (1)High-Performance RISC CPU; (2)Special Microcontroller; (3)Power-Saving Sleep mode; (4)Wide Operating Voltage Range 2.0V to 5.5V; (5)Industrial and Extended Temperature Range; (6)Low-Power Power-on Reset (POR); (7)Power-up Timer (PWRT) and Oscillator Start-up; (8)Timer (OST); (9)Brown-out Detect (BOD); (10)Watchdog Timer (WDT) with Independent; (11)Oscillator for Reliable Operation; (12)Multiplexed MCLR/Input-pin; (13)Interrupt-on-Pin Change; (14)Low-Power; (15)12 I/O Pins with Individual Direction Control; (16)High Current Sink/Source for Direct LED Drive; (17)Timer0: 8-bit Timer/Counter with 8-bit Programmable Prescaler.
