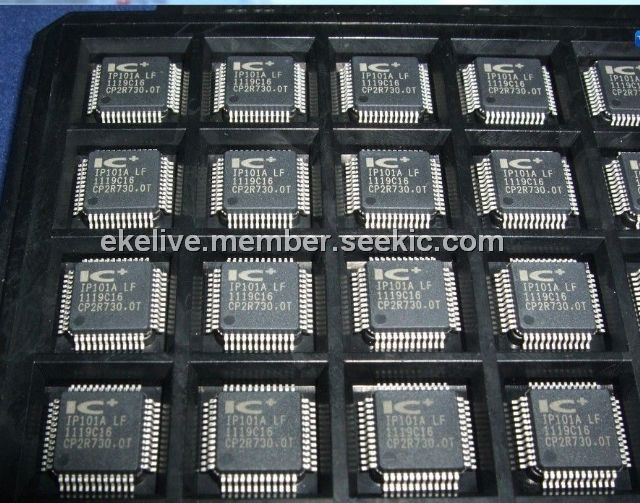

Product Summary

The IP101 is a single port 10/100 fast ethernet transceiver. The IP101 is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations. It supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost. To improve the system performance, the IP101 provides a hardware interrupt pin to indicate the link, speed and duplex status change. The IP101 provides Media Independent Interface (MII) to connect with different types of 10/100Mb Media Access Controller (MAC). The IP101 is designed to use category 5 unshielded twisted-pair cable connecting to other LAN devices.

Parametrics

IP101 maximum ratings: (1)Nominal Frequency: 25.000 MHz; (2)Temperature Characteristics: +/- 50 ppm; (3)Operating Temperature Range:-10℃ ~ +70℃; (4)Equivalent Series Resistance: 40 ohm Max.; (5)Drive Level: 100μW; (6)Load Capacitance: 20 pF; (7)Shunt Capacitance: 7 pF Max; (8)Supply Voltage: 3.0 V to 3.6V; (9)Storage Temp: -55℃ to 125℃.

Features

IP101 features: (1)10/100Mbps TX; (2)Full-duplex or half-duplex; (3)Supports Auto MDI/MDIX function; (4)Fully compliant with IEEE 802.3/802.3u; (5)Supports IEEE 802.3u auto-negotiation; (6)Supports MII interface; (7)IEEE 802.3 full duplex control specification; (8)Supports Automatic Power Saving mode; (9)Supports BaseLine Wander (BLW) compensation; (10)Supports Interrupt function; (11)Supports repeater mode; (12)Single 3.3V power supply with built-in 2.5V regulator; (13)DSP-based PHY Transceiver technology; (14)Flexible LED display for speed, duplex, link, activity and collision.

Diagrams

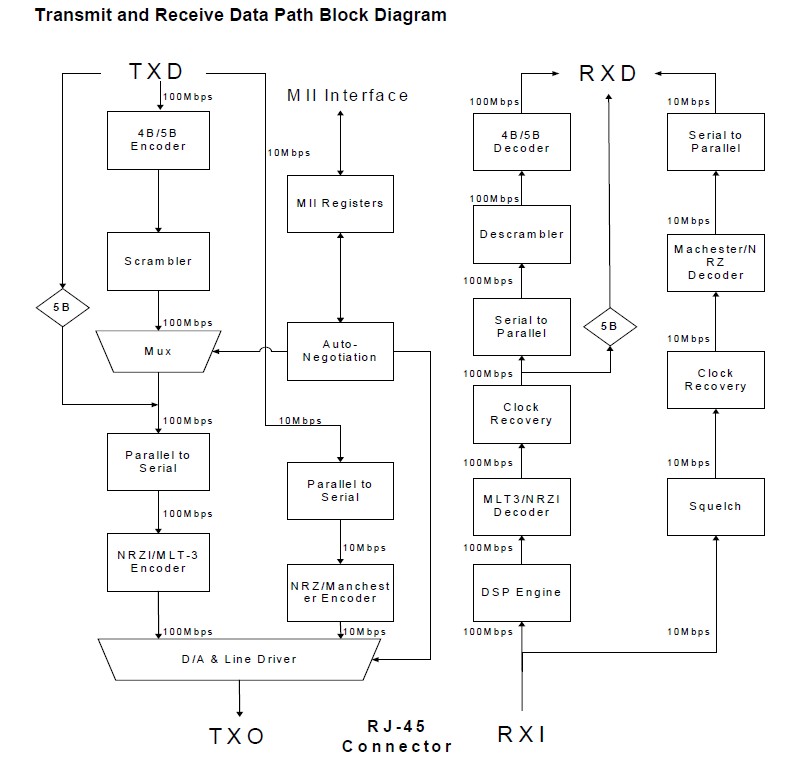

IP101 Transmit and Receive Data Path Block Diagram
