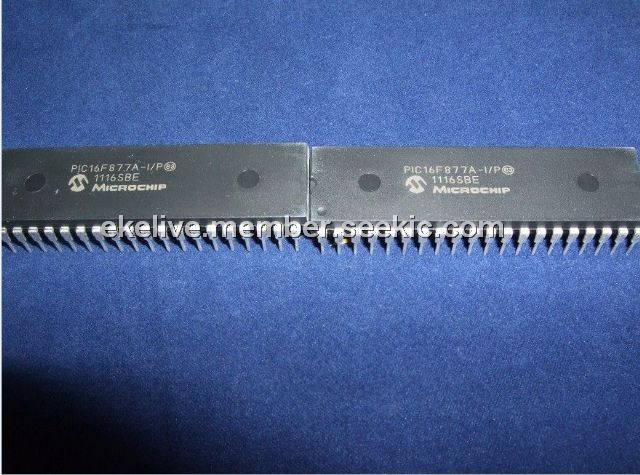

PIC16F877A-I/P

Enhanced Flash Microcontroller, -0.3 to +7.5V, Low-power, high-speed, 28/40/44-Pin

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.40~2.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.40~2.70

PartNumber:: PIC16F877A-I/P

Brand:: Microchip Technology - Microchip | Pack: DIP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James Blunt's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-07-07

From Other Seller

Part Number:PIC16F877A-I/P
US $2.40 - 2.70
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
IRFP260N

US $1.30 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The PIC16F877A-I/P is a 28/40/44-Pin Enhanced Flash Microcontroller. It is available in 40-pin and 44-pin packages.

Parametrics

PIC16F877A-I/P absolute maximum ratings: (1)Ambient temperature under bias: -55 to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS (except VDD, MCLR. and RA4): -0.3V to (VDD + 0.3V); (4)Voltage on VDD with respect to VSS: -0.3 to +7.5V; (5)Voltage on MCLR with respect to VSS: 0 to +14V; (6)Voltage on RA4 with respect to Vss: 0 to +8.5V; (7)Total power dissipation: 1.0W; (8)Maximum current out of VSS pin: 300 mA; (9)Maximum current into VDD pin: 250 mA.

Features

PIC16F877A-I/P features: (1)100,000 erase/write cycle Enhanced Flash program memory typical; (2)1,000,000 erase/write cycle Data EEPROM memory typical; (3)Data EEPROM Retention > 40 years; (4)Self-reprogrammable under software control; (5)In-Circuit Serial Programming(ICSP)via two pins; (6)Single-supply 5V In-Circuit Serial Programming; (7)Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation; (8)Programmable code protection; (9)Power saving Sleep mode; (10)Selectable oscillator options; (11)In-Circuit Debug (ICD) via two pins.
