Product Summary

The TL431-CJ431 is an encapsulate adjustable reference source.

Parametrics

TL431-CJ431 absolute maximum ratings: (1)Cathode Voltage VKA: 37 V; (2)Cathode Current Range(Continuous) IKA: -100~+150 mA; (3)Reference Input Current Range Iref: 0.05~+10 mA; (4)Power Dissipation PD: 350 mW; (5)Operating temperature Topr: 0~70 ℃; (6)Storage temperature Range Tstg: -55~+150 ℃.

Features

TL431-CJ431 features: (1)The output voltage can be adjusted to 36V; (2)Low dynamic output impedance ,its typical value is 0.2Ω; (3)Trapping current capability is 1 to 100mA; (4)The typical value of the equivalent temperature factor in the whole temperature scope is 50 ppm/℃; (5)The effective temperature compensation in the working range of full temperature; (6)Low output noise voltage; (7)Fast on -state response.

Diagrams

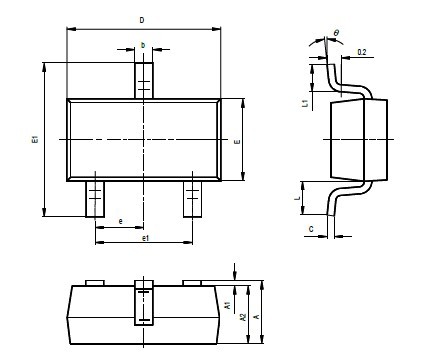

TL431-CJ431 package outline dimensions
