Product Summary

The HFBR-4516Z of plastic fiber optic cable is constructed of a single step-index fiber sheathed in a black polyethylene jacket. The duplex fiber consists of two simplex fibers joined with a zipcord web. Standard attenuation and extra low loss POF cables are identical except for attenuation specifications. Polyethylene jackets on all plastic fiber cables comply with UL VW-1 flame retardant specification.

Parametrics

HFBR-4516Z absolute maximum ratings: (1)Storage and Operating Temperature, TS,O: -55 to +85℃; (2)Recommended Operating Temperature, TO: -40 to +85℃; (3)Installation Temperature, TI: -20 to +70℃; (4)Short Term Tensile Single Channel, FT: 50N; (5)Dual Channel, FT: 100N; (6)Short Term Bend Radius, r: 25mm; (7)Long Term Bend Radius, r: 35mm; (8)Long Term Tensile Load, FT: 1N; (9)Flexing: 1000Cycles.

Features

HFBR-4516Z features: (1)Compatible with Avago Versatile Link Family of connectors and fiber optic components; (2)1 mm diameter Plastic Optical Fiber (POF) in two grades: low cost standard POF with 0.22 dB/m typical attenuation, or high performance extra low loss POF with 0.19 dB/m typical attenuation.

Diagrams

HFBR-4516Z dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

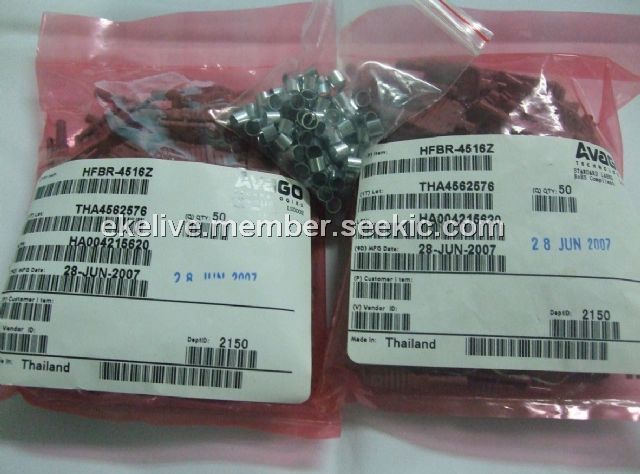

HFBR-4516Z
HFBR-4516Z

Avago Technologies

Fiber Optic Connectors VERS LINK LATCHING D X CONN RoHS

Data Sheet

0-1: $0.77
1-25: $0.69
25-100: $0.61
100-250: $0.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HFBR-0310
HFBR-0310

Avago Technologies

Fiber Optic Development Tools 155 MBd Txcvr Evaluation Kit

Data Sheet

Negotiable
HFBR-0310Z
HFBR-0310Z

Avago Technologies

Fiber Optic Development Tools 125MBd 1300nm Evaluation Kit

Data Sheet

0-3: $132.69
3-25: $121.63
HFBR-0319
HFBR-0319

Avago Technologies

Fiber Optic Development Tools 1X9 Fiber Optic Evaluation Kit

Data Sheet

0-4: $103.50
4-25: $100.05
HFBR-0400
HFBR-0400

Avago Technologies

Fiber Optic Development Tools SMA Fiber Optic Evaluation Kit

Data Sheet

Negotiable
HFBR-0410
HFBR-0410

Avago Technologies

Fiber Optic Development Tools ST Fiber Optic Evaluation Kit

Data Sheet

Negotiable
HFBR-0410Z
HFBR-0410Z

Avago Technologies

Fiber Optic Development Tools DC-5MBd 820nm Evaluation Kit

Data Sheet

0-8: $39.43
8-25: $29.57
25-100: $27.60
100-250: $27.11
