Product Summary

The rectifier STTH6003CW is suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged either in ISOTOP or in TO-247, this device is intended for use in low voltage, high frequency inverters, free wheeling operation, welding equipments and telecom power supplies.

Parametrics

STTH6003CW absolute maximum ratings: (1)VRRM, Repetitive peak reverse voltage: 300 V; (2)IF(RMS), RMS forward current: 60 A; (3)IF(AV), Average forward current: Tc =135℃, Per diode: 30A; δ=0.5, Per device, 60A; (4)IFSM, Surge non repetitive forward current, tp = 10ms sinusoidal: 300 A; (5)IRSM, Non repetitive peak reverse current, tp =100 μs square: 4A; (6)Tstg, Storage temperature range: - 65 to + 175 ℃; (7)Tj, Maximum operating junction temperature: 175 ℃.

Features

STTH6003CW features: (1)combines highest recovery and voltage performance; (2)ultra-fast, soft and noise-free recovery; (3)insulation voltage: 2500 vrms; (4)capacitance: < 45 pf; (5)low inductance and low capacitance allow simplified layout.

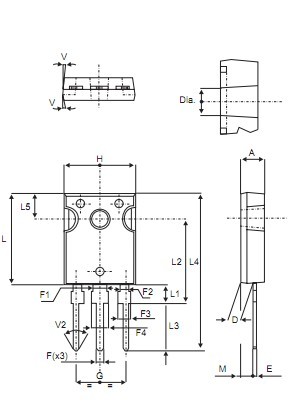

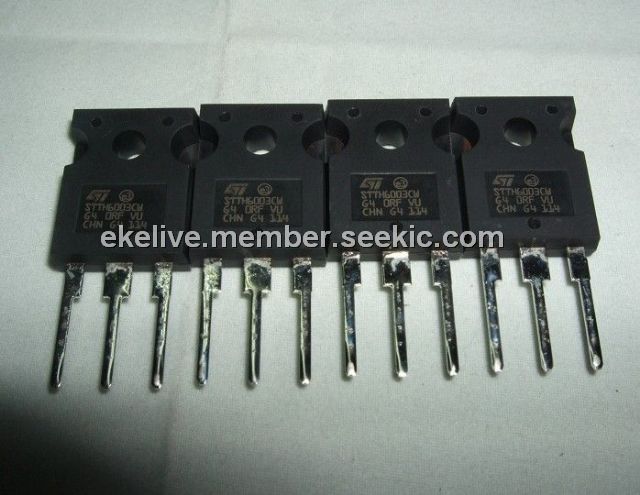

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STTH6003CW
STTH6003CW

STMicroelectronics

Rectifiers 2X30 Amp 300 Volt BULK

Data Sheet

0-1: $2.55
1-10: $2.32
10-100: $2.13
100-250: $2.04
