Product Summary

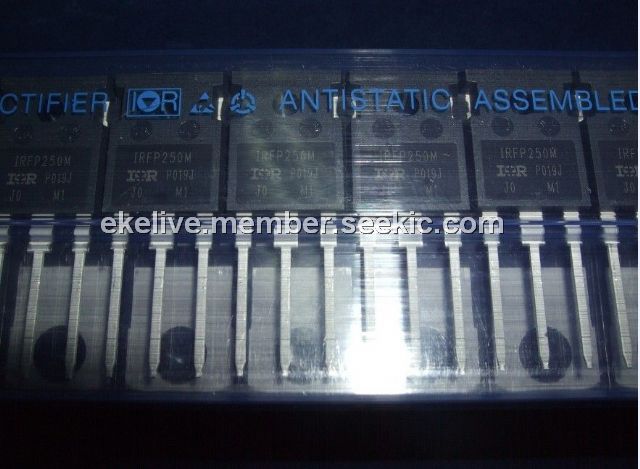

The IRFP250MPBF is a Power MOSFET.

Parametrics

IRFP250MPBF absolute maximum ratings: (1)ID @ TC = 25℃, Continuous Drain Current, VGS @ 10V: 30A; (2)ID @ TC = 100℃, Continuous Drain Current, VGS @ 10V: 21A; (3)IDM, Pulsed Drain Current: 120A; (4)PD @TC = 25℃: Power Dissipation: 214 W; Linear Derating Factor 1.4 W/℃; (5)VGS Gate-to-Source Voltage: ± 20 V; (6)EAS Single Pulse Avalanche Energy: 315 mJ; (7)IAR Avalanche Current: 30 A; (8)EAR Repetitive Avalanche Energy: 21 mJ; (9)dv/dt Peak Diode Recovery dv/dt: 8.6 V/ns.

Features

IRFP250MPBF features: (1)Advanced Process Technology; (2)Dynamic dv/dt Rating; (3)175℃ Operating Temperature; (4)Fast Switching; (5)Fully Avalanche Rated; (6)Ease of Paralleling; (7)Simple Drive Requirements; (8)TO-247AC; (9)PD - 96292; (10)Lead-Free.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP250MPBF
IRFP250MPBF

International Rectifier

MOSFET MOSFT 200V 30A 75mOhm 82nCAC

Data Sheet

0-1: $1.30
1-25: $0.84
25-100: $0.61
100-250: $0.57
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRFP044
IRFP044

Vishay/Siliconix

MOSFET N-Chan 60V 57 Amp

Data Sheet

Negotiable
IRFP044, SiHFP044
IRFP044, SiHFP044

Other


Data Sheet

Negotiable
IRFP044N
IRFP044N


MOSFET N-CH 55V 53A TO-247AC

Data Sheet

Negotiable
IRFP044NPBF
IRFP044NPBF

International Rectifier

MOSFET MOSFT 55V 49A 20mOhm 40.7nCAC

Data Sheet

0-1: $1.21
1-25: $0.79
25-100: $0.57
100-250: $0.53
IRFP044PBF
IRFP044PBF

Vishay/Siliconix

MOSFET N-Chan 60V 57 Amp

Data Sheet

Negotiable
IRFP048
IRFP048

Vishay/Siliconix

MOSFET N-Chan 60V 70 Amp

Data Sheet

0-331: $3.92
331-500: $3.60
500-1000: $3.46
1000-2000: $3.37
