Product Summary

The STPS30H100CT is a high voltage power schottky rectifier. It is suited for Switch Mode Power Supplies and high frequency DC to DC converters. Packaged in TO-247, the STPS30H100CT is intended for use in high frequency inverters.

Parametrics

STPS30H100CT absolute maximum ratings: (1)Repetitive peak reverse voltage:100V; (2)RMS forward current:30A; (3)Average forward current:15A; (4)Surge non repetitive forward current:250A; (5)Repetitive peak reverse current:1A; (6)Non repetitive peak reverse current:3A; (7)Repetitive peak avalanche power:10800W; (8)Storage temperature range:-65℃ to +175℃; (9)Maximum operating junction temperature:175℃; (10)Critical rate of rise of reverse voltage:10000V/us.

Features

STPS30H100CT features: (1)negligible switching losses; (2)low leakage current; (3)good trade off between leakage current and forward voltage drop; (4)low thermal resistance; (5)avalanche capability specified.

Diagrams

STPS30H100CT circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

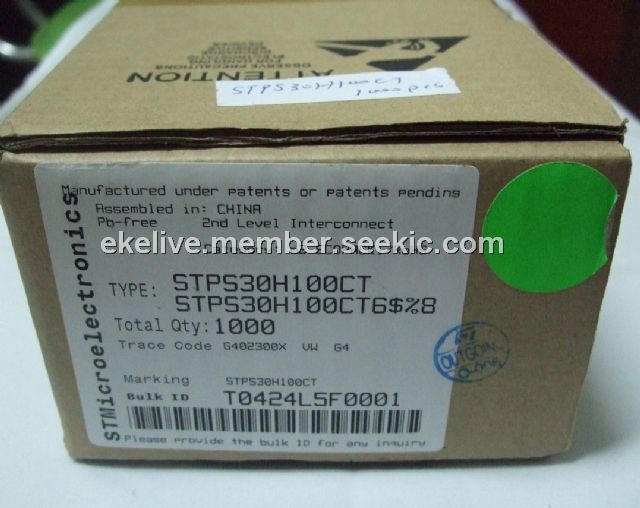

STPS30H100CT
STPS30H100CT

STMicroelectronics

Schottky (Diodes & Rectifiers) 2X15 Amp 100 Volt

Data Sheet

0-690: $0.64
690-1000: $0.61
1000-2000: $0.58
2000-5000: $0.56
