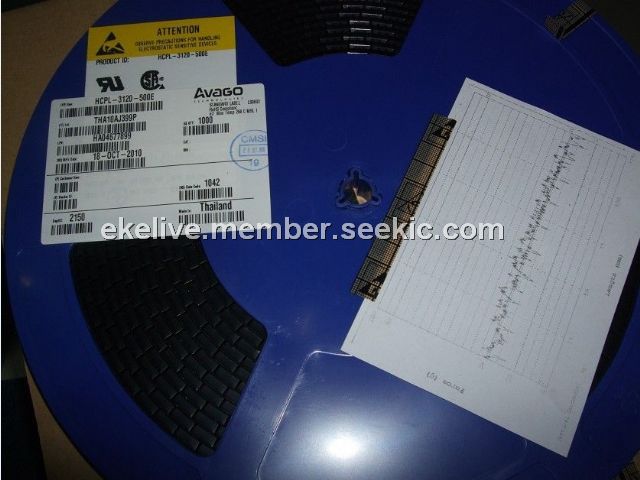

Product Summary

The HCPL-3120-500 consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

Parametrics

HCPL-3120-500 absolute maximum ratings: (1)Storage Temperature, TS: -55 to 125℃; (2)Operating Temperature, TA: -40 to 100℃; (3)Average Input Current, IF(AVG): 25 mA; (4)Peak Transient Input Current, IF(TRAN): 1.0 A; (5)Reverse Input Voltage, VR: 5 Volts; (6)High Peak Output Current IOH(PEAK): 2.5 A; (7)Low Peak Output Current IOL(PEAK): 2.5 A; (8)Supply Voltage (VCC - VEE): 0 to 35 Volts; (9)Output Voltage VO: 0 to VCC Volts; (10)Output Power Dissipation PO: 250 mW; (11)Total Power Dissipation PT: 295 mW.

Features

HCPL-3120-500 features: (1)2.0 A Minimum Peak Output Current; (2)15 kV/ms Minimum Common Mode Rejection (CMR) at VCM = 1500 V; (3)0.5 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive; (4)ICC = 5 mA Maximum Supply Current; (5)Under Voltage Lock-Out Protection (UVLO) with Hysteresis; (6)Wide Operating VCC Range: 15 to 30 Volts; (7)500 ns Maximum Switching Speeds.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-3120-500E
HCPL-3120-500E

Avago Technologies

Logic Output Optocouplers 2.0A IGBT Gate Drive

Data Sheet

0-1: $1.65
1-25: $1.35
25-100: $1.20
100-250: $1.08
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-0201
HCPL-0201

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-1: $1.95
1-25: $1.60
25-100: $1.42
100-250: $1.27
HCPL-0201#060
HCPL-0201#060

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-280: $1.30
280-500: $1.22
500-1000: $1.15
1000-2000: $1.08
HCPL-0201#500
HCPL-0201#500

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-885: $1.22
885-1500: $1.15
1500-3000: $1.08
3000-6000: $1.01
HCPL-0201#560
HCPL-0201#560

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-885: $1.24
885-1500: $1.17
1500-3000: $1.10
3000-6000: $1.03
HCPL-0201-000E
HCPL-0201-000E

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-1: $1.95
1-25: $1.60
25-100: $1.42
100-250: $1.27
HCPL-0201-060E
HCPL-0201-060E

Avago Technologies

High Speed Optocouplers 5MBd 1Ch 1.6mA

Data Sheet

0-280: $1.30
280-500: $1.22
500-1000: $1.15
1000-2000: $1.08
