Product Summary

The HCPL-3120-500E is a 2.0 Amp Output Current IGBT Gate Drive Optocoupler. It consists of a GaAsP LED optically coupled to an integrated circuit with a power output stage. This optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate controlled devices. The applications of the HCPL-3120-500E include: Isolated IGBT/MOSFET Gate Drive, AC and Brushless DC Motor Drives, Industrial Inverters, Switch Mode Power Supplies(SMPS).

Parametrics

HCPL-3120-500E absolute maximum ratings: (1)Storage Temperature TS: min=-55℃, max=125 ℃; (2)Operating Temperature TA: min=-40℃, max=100 ℃; (3)Average Input Current IF(AVG): max=25mA; (4)Peak Transient Input Current(<1 μs pulse width, 300 pps) IF(TRAN): max=1.0A; (5)Reverse Input Voltage VR: 5 Volts; (6)Supply Voltage (VCC - VEE): min=0, max=35 Volts; (7)Output Voltage VO: min=0, max=VCC Volts; (8)Output Power Dissipation PO: max=250 mW; (9)Total Power Dissipation PT: max=295 mW ; (10)Lead Solder Temperature: 260℃ for 10 sec., 1.6 mm below seating plane.

Features

HCPL-3120-500E features: (1)2.0 A Minimum Peak Output Current; (2)15 kV/μs Minimum Common Mode Rejection (CMR) at VCM = 1500 V; (3)0.5 V Maximum Low Level Output Voltage (VOL) Eliminates Need for Negative Gate Drive; (4)ICC = 5 mA Maximum Supply Current; (5)Under Voltage Lock-Out Protection (UVLO) with Hysteresis; (6)Wide Operating VCC Range: 15 to 30 Volts; (7)500 ns Maximum Switching Speeds.

Diagrams

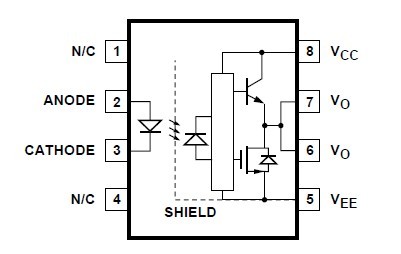

HCPL-3120-500E function diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HCPL-3120-500E
HCPL-3120-500E

Avago Technologies

Logic Output Optocouplers 2.0A IGBT Gate Drive

Data Sheet

0-1: $1.65
1-25: $1.35
25-100: $1.20
100-250: $1.08
