Product Summary

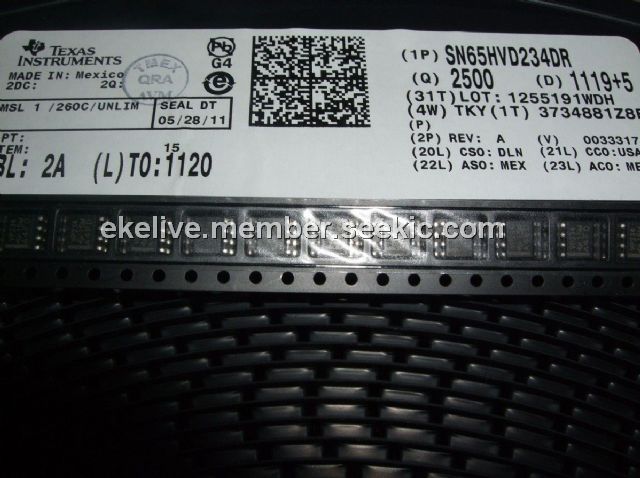

The SN65HVD234DR is a 3.3-V can transceiver. It is used in applications employing the controller area network (CAN) serial communication physical layer in accordance with the ISO 11898 standard. As a CAN transceiver, the SN65HVD234DR provides transmit and receive capability between the differential CAN bus and a CAN controller, with signaling rates up to 1 Mbps. Designed for operation in especially harsh environments, the SN65HVD234DR features cross-wire, overvoltage and loss of ground protection to ± 36 V, with overtemperature protection and common-mode transient protection of ± 100 V.
Parametrics
SN65HVD234DR absolute maximum ratings: (1)VCC, Supply voltage range: –0.3 to 7 V; (2)Voltage range at any bus terminal (CANH or CANL): –36 to 36 V; (3)Voltage input range, transient pulse, CANH and CANL, through 100 Ω: –100 to 100 V; (4)VI, Input voltage range, (D, R, RS, EN, LBK, AB): –0.5 to 7 V; (5)IO, Receiver output current: –10 to 10 mA; (6)Electrostatic discharge Human Body Model CANH, CANL and GND: 16 kV; (7)Electrostatic discharge, Human Body Model All pins: 3 kV; Charged-Device Mode All pins: 1 kV; (8)TJ, Operating junction temperature: 150℃.
Features
SN65HVD234DR features: (1)Bus-Pin Fault Protection Exceeds ±36 V; (2)Bus-Pin ESD Protection Exceeds 16-kV HBM; (3)GIFT/ICT Compliant; (4)Compatible With ISO 11898; (5)Signaling Rates up to 1 Mbps; (6)Extended –7-V to 12-V Common-Mode Range; (7)High-Input Impedance Allows for 120 Nodes; (8)LVTTL I/Os Are 5-V Tolerant; (9)Adjustable Driver Transition Times for Improved Signal Quality; (10)Unpowered Node Does Not Disturb the Bus; (11)Low-Current Standby Mode: 200μA Typical; (12)Thermal Shutdown Protection; (13)Power-Up/Down Glitch-Free Bus Inputs and Outputs; (14)High Input Impedance With Low VCC; (15)Monolithic Output During Power Cycling; (16)DeviceNet Vendor ID #806.

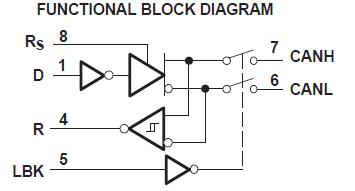

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SN65HVD234DR |
Texas Instruments |
CAN Interface IC SLEEP MODE |
Data Sheet |
|
|
||||||||||||
|
SN65HVD234DRG4 |
Texas Instruments |
CAN Interface IC SLEEP MODE |
Data Sheet |
|
|
||||||||||||
