Product Summary

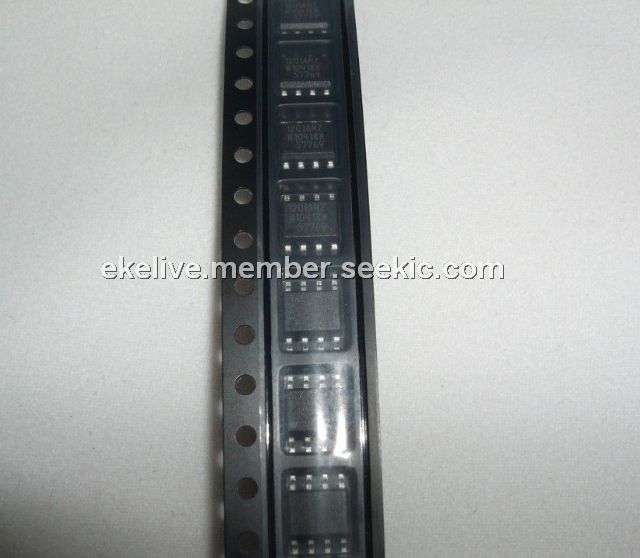

The ADUM1201ARZ-RL is a Dual-Channel Digital Isolator based on Analog Devices’ iCoupler technology. Combining high speed CMOS and monolithic transformer technology, these isolation components provide outstanding performance characteristics superior to alternatives such as optocoupler devices. The ADUM1201ARZ-RL provides two independent isolation channels in a variety of channel configurations and data rates (see the Ordering Guide). Both parts operate with the supply voltage on either side ranging from 2.7 V to 5.5 V, providing compatibility with lower voltage systems as well as enabling a voltage translation functionality across the isolation barrier. The applications of the ADUM1201ARZ-RL are Size-critical multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver isolation, Digital field bus isolation.

Parametrics

ADUM1201ARZ-RL absolute maximum ratings: (1)Storage Temperature:-55℃ to 150℃; (2)Ambient Operating Temperature:-40℃ to 105℃; (3)Supply Voltages:-0.5V to 7.0V; (4)Input Voltage:-0.5V to VDDI+0.5V; (5)Output Voltage:-0.5V to VDDO+0.5V ; (6)Average Output Current, per Pin3:-35mA to 35mA; (7)Common-Mode Transients:-100kV/μs to +100kV/μs.

Features

ADUM1201ARZ-RL features: (1)Narrow body SOIC 8-lead package ; (2)Low power operation: 5 V operation: 1.1 mA per channel maximum @ 0 Mbps to 2 Mbps, 3.7 mA per channel maximum @ 10 Mbps, 8.2 mA per channel maximum @ 25 Mbps; 3 V operation: 0.8 mA per channel maximum @ 0 Mbps to 2 Mbps, 2.2 mA per channel maximum @ 10 Mbps , 4.8 mA per channel maximum @ 25 Mbps ; (3)Bidirectional communication ; (4)3 V/5 V level translation ; (5)High temperature operation: 105℃; (6)High data rate: dc to 25 Mbps (NRZ) ; (7)Precise timing characteristics ; (8)3 ns maximum pulse-width distortion ; (9)3 ns maximum channel-to-channel matching ; (10)High common-mode transient immunity: > 25 kV/μs ; (11)Safety and regulatory approvals ; (12)UL recognition:2500 V rms for 1 minute per UL 1577 ; (13)CSA component acceptance notice #5A ; (14)VDE certificate of conformity ; (15)DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01 ; (16)DIN EN 60950 (VDE 0805): 2001-12; DIN EN 60950: 2000 ; (17)VIORM = 560 V peak.

Diagrams

ADUM1201ARZ-RL block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1201ARZ-RL7
ADUM1201ARZ-RL7


IC ISOLATOR DIGITAL DUAL 8-SOIC

Data Sheet

0-1: $1.87
1-10: $1.67
10-25: $1.50
25-100: $1.37
100-250: $1.24
250-500: $1.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADuM1100
ADuM1100

Other


Data Sheet

Negotiable
ADUM1100AR
ADUM1100AR


IC DIGITAL ISOLATOR 1CH 8-SOIC

Data Sheet

0-98: $2.28
ADUM1100AR-RL7
ADUM1100AR-RL7


IC DIGITAL ISOL/COUPLER 8SOIC

Data Sheet

0-1: $2.92
1-10: $2.62
10-25: $2.36
25-100: $2.14
100-250: $1.94
250-500: $1.74
ADUM1100ARZ
ADUM1100ARZ


IC DIGITAL ISOLATOR 1CH 8-SOIC

Data Sheet

0-1: $2.44
1-10: $2.17
10-100: $1.78
100-250: $1.61
250-500: $1.44
500-1000: $1.22
1000-2500: $1.16
ADUM1100ARZ-RL7
ADUM1100ARZ-RL7


IC DIGITAL ISOL/COUPLER 8-SOIC

Data Sheet

0-1: $2.50
1-10: $2.24
10-25: $2.02
25-100: $1.83
100-250: $1.66
250-500: $1.49
ADUM1100BR
ADUM1100BR


IC DIGITAL ISOL/COUPLER 8SOIC

Data Sheet

0-98: $2.60
