Product Summary

The ADUM1401ARWZ-RL is a 4-channel digital isolator based on Analog Devices iCoupler technology. Combining high speed CMOS and monolithic air core transformer technology, the isolation component provides outstanding performance characteristics superior to alternatives such as optocoupler device.

Parametrics

ADUM1401ARWZ-RL absolute maximum ratings: (1)Storage Temperature, TST: -65 to +150 ℃; (2)Ambient Operating Temperature, TA: -40 to +105 ℃; (3)Supply Voltages, VDD1, VDD2: -0.5 to +7.0 V; (4)Input Voltage, VIA, VIB, VIC, VID, VE1,VE2: -0.5 to VDDI +0.5 V; (5)Output Voltage, VOA, VOB, VOC, VOD: -0.5 to VDDO + 0.5 V; (6)Average Output Current per Pin: Side 1, IO1: -18 to +18 mA; Side 2, IO2: -22 to +22 mA; (7)Common-Mode Transients: -100 +100 kV/μs.

Features

ADUM1401ARWZ-RL features: (1)Low power operation; (2)Bidirectional communication; (3)3 V/5 V level translation; (4)High temperature operation: 105℃ ; (5)High data rate: dc to 90 Mbps (NRZ); (6)High common-mode transient immunity: >25 kV/μs; (7)Output enable function; (8)16-lead SOIC wide body package, Pb-free models available; (9)Safety and regulatory approvals.

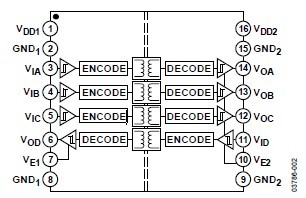

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADUM1401ARWZ-RL
ADUM1401ARWZ-RL


IC DGITAL ISOLATOR 4CH 16-SOIC

Data Sheet

0-1: $3.33
1-10: $2.98
10-25: $2.68
25-100: $2.44
100-250: $2.21
250-500: $1.98
