Product Summary
The UAF42AU is a universal active filter which can be configured for a wide range of low-pass, high-pass, and band-pass filters. It uses a classical state-variable analog architecture with an inverting amplifier and two integrators. The applications of the UAF42AU include: (1)test equipment; (2)communications equipment; (3)medical instrumentation; (4)data acquisition systems; (5)monolithic replacement for uaf41.
Parametrics
UAF42AU absolute maxing ratings: (1)Power Supply Voltage: ±18V; (2)Input Voltage: ±VS ±0.7V; (3)Output Short Circuit: Continuous; (4)Operating Temperature: Plastic DIP, P; SOIC, U: –40℃ to +85℃; (5)Storage Temperature: Plastic DIP, P; SOIC, U: –40℃ to +125℃; (6)Junction Temperature: Plastic DIP, P; SOIC, U: +125℃; (7)Lead Temperature (soldering, 10s): +300℃.
Features
UAF42AU features: (1)versatile—low-pass, high-pass; band-pass, band-reject; (2)simple design procedure; (3)accurate frequency and q —includes on chip 1000pf ±0.5% capacitors.

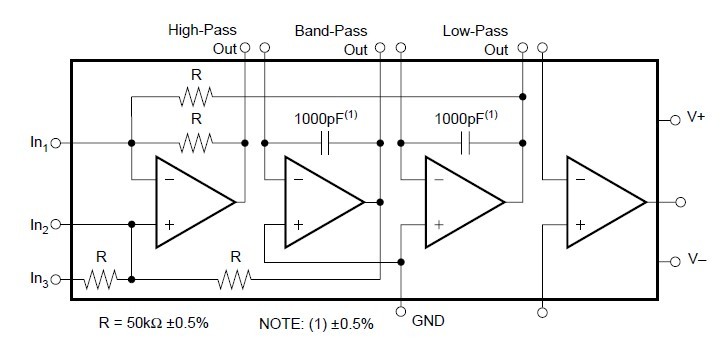

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UAF42AU |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
 |
UAF42AU-1 |
Texas Instruments |
IC UNIV ACTIVE FILTER 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||
|
UAF42AUE4 |
Texas Instruments |
Active Filters Universal Active Filter |
Data Sheet |
|
|
||||||||||||
