Product Summary

The LM358N is a low power dual operational amplifier, which was designed specifically to operate from a single power supply over a wide range of voltages. The low power supply drain of LM358N is independent of the magnitude of the power supply voltage. Its applications include transducer amplifiers, dc gain blocks and all the conventional op-amp circuits which now can be more easily implemented in single power supply systems.

Parametrics

LM358N absolute maximum ratings:(1)VCC, Supply voltage: +/-16 or 32 V; (2)Vi, Input Voltage: -0.3 to +32 V; (3)Vid, Differential Input Voltage: +32 V; (4)Ptot, Power Dissipation:500mW;Output Short-circuit Duration:Infinite; (5)Iin, Input Current:50 mA; (6)Toper, Opearting Free-air Temperature Range:0 to +70℃; (7)Tstg, Storage Temperature Range: -65 to +150℃.

Features

LM358N features:(1)internally frequency compensated; (2)large dc voltage gain: 100db; (3)wide bandwidth (unity gain): 1.1mhz(temperature compensated); (4)very low supply current/op (500μa)essentially independent of supply voltage; (5)low input bias current: 20na(temperature compensated); (6)low input offset voltage: 2mv; (7)low input offset current: 2na; (8)input common-mode voltage range includes ground; (9)differential input voltage range equal to the power supply voltage; (10)large output voltage swing 0v to(vcc - 1.5v).

Diagrams

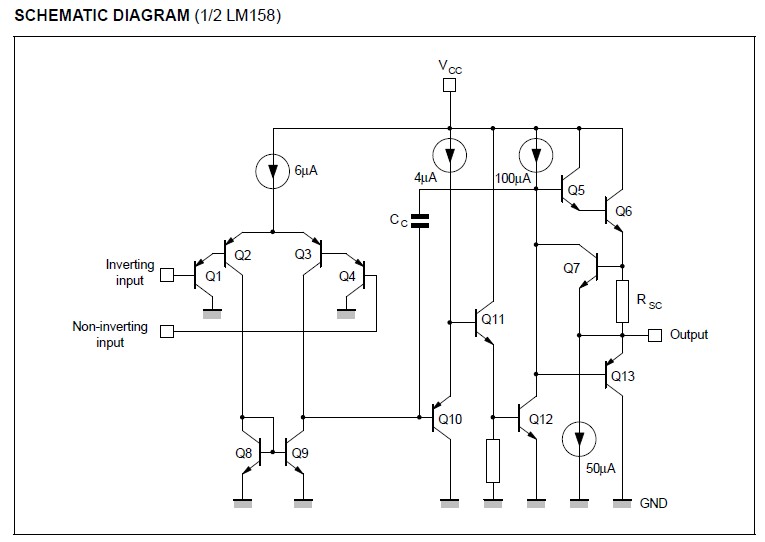

LM358N SCHEMATIC DIAGRAM
