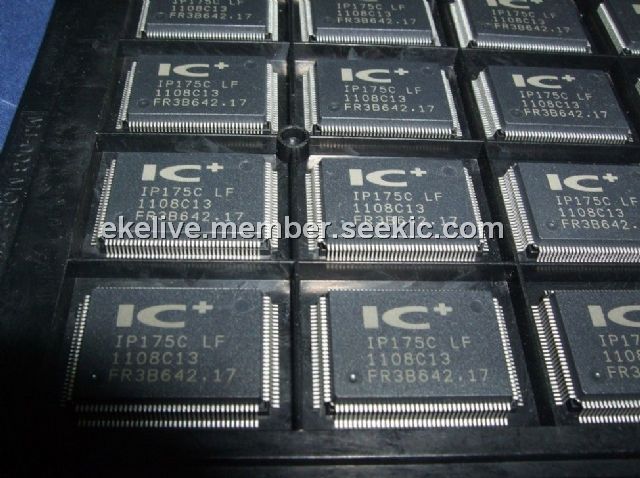

Product Summary
The IP175CLF integrates a 6-port switch controller, SSRAM, and 5 10/100 Ethernet transceivers. Each of the transceivers complies with the IEEE802.3, IEEE802.3u, and IEEE802.3x specifications. The transceiver of the IP175CLF is designed in DSP approach with 0.18um technology; they have high noise immunity and robust performance. The IP175CLF operates in store and forward mode. It supports flow control, auto MDI/MDI-X, CoS, port base VLAN, bandwidth control, DiffServ, SMART MAC and LED functions, etc. Each port can be configured to auto-negotiation or forced 10M/100M, full/half duplexmode. Using an EEPROM or pull up/down resistors on specified pins can configure the desired options.
Parametrics
IP175CLF absolute maximum rating: (1)Supply Voltage: –0.3V to 4.0V; (2)Input Voltage: –0.3V to 5.0V; (3)Output Voltage: –0.3V to 5.0V; (4)Storage Temperature: -65℃ to 150℃; (5)Ambient Operating Temperature (Ta): 0℃ to 70℃.
Features
IP175CLF features: (1)IP175CLF compatible (pins compatible); (2)Built in 6 MAC and 5 PHY; (3)Each port can be configured to be 10Base-T, 100Base-TX; (4)2k MAC address; (5)Support auto-polarity for 10Mbps; (6)Filter/forward reserved address option; (7)Broadcast storm protection; (8)Auto MDI-MDIX; (9)Support one fiber port with far end fault function; (10)Built in linear regulator control circuit; (11)Low power consumption; (12)0.18um, 128 pin PQFP.

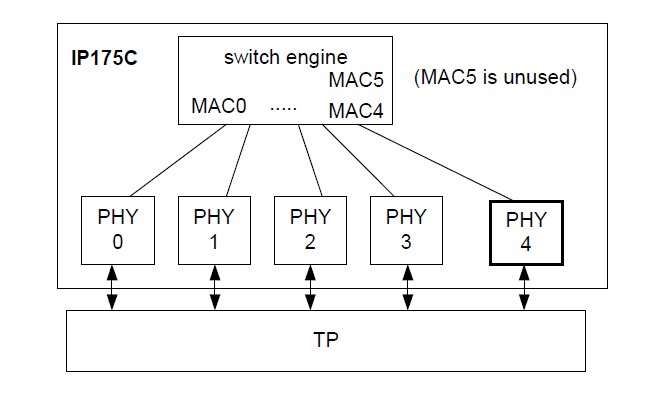

Diagrams
