Product Summary

The STM32F103C8T6 is one of the medium-density performance line family. It is a MCU. The STM32F103C8T6 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses.

Parametrics

STM32F103C8T6 absolute maximum ratings: (1)External main supply voltage (including VDDA and VDD):–0.3V to 4.0V; (2)Input voltage on five volt tolerant pin:VSS-0.3V to +5.5V; (3)Input voltage on any other pin:VSS-0.3V to VDD+0.3V; (4)Variations between different VDD power pins:50mV; (5)Variations between all the different ground pins: 50mV.

Features

STM32F103C8T6 features: (1)72 MHz maximum frequency,1.25 DMIPS/MHz (Dhrystone 2.1)performance at 0 wait state memory access; (2)Single-cycle multiplication and hardware division; (3)2.0 to 3.6 V application supply and I/Os ; (4)POR, PDR, and programmable voltage ; (5)detector (PVD); (6)4-to-16 MHz crystal oscillator ; (7)Internal 8 MHz factory-trimmed RC; (8)Internal 40 kHz RC; (9)PLL for CPU clock; (10)32 kHz oscillator for RTC with calibration; (11)low power; (12)Conversion range: 0 to 3.6 V; (13)Dual-sample and hold capability; (14)Temperature sensor.

Diagrams

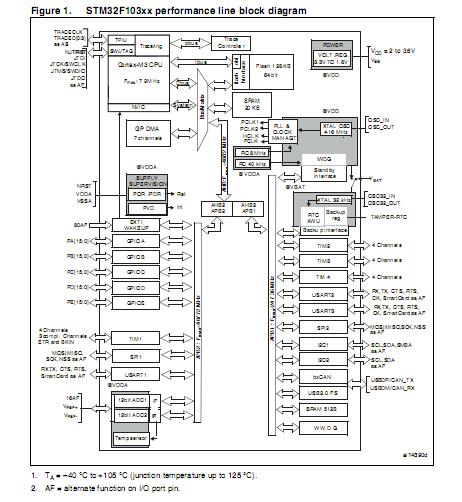

STM32F103C8T6  block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

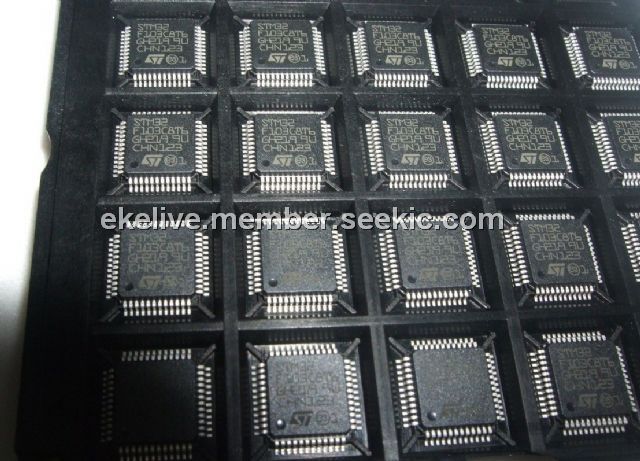

STM32F103C8T6
STM32F103C8T6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 64KB 20KB RAM 2X12 ADC

Data Sheet

0-1: $3.43
1-10: $3.08
10-100: $2.53
100-250: $2.33
STM32F103C8T6TR
STM32F103C8T6TR

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 USB 7 TIMERS 2 ADCS CAN

Data Sheet

0-1785: $1.85
1785-2000: $1.78
2000-2400: $1.78
