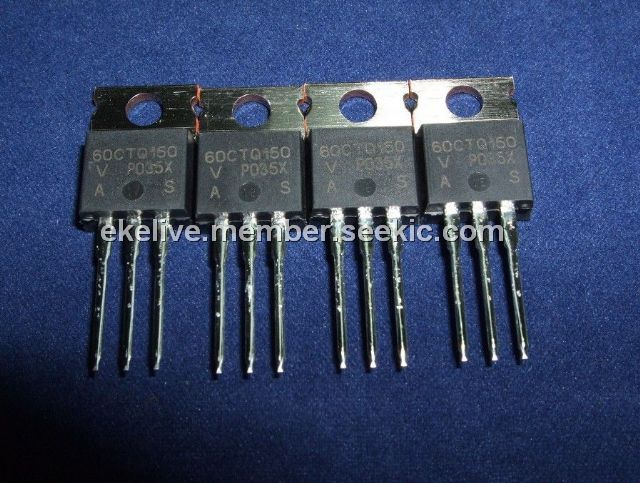

Product Summary

The 60CTQ150PBF center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175℃ junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.

Parametrics

60CTQ150PBF absolute maximum ratings: (1)Maximum average forward current, per leg: 30A; per device: 60A; (2)Maximum peak one cycle non-repetitive surge current, per leg, IFSM: 710A; (3)Non-repetitive avalanche energy, per leg, EAS TJ = 25 ℃, IAS= 0.9 A, L = 1 mH 0.4 mJ; (4)Repetitive avalanche current per leg, IAR: 0.9 A.

Features

60CTQ150PBF features: (1)175℃ TJ operation; (2)Center tap TO-220 package; (3)Low forward voltage drop; (4)High frequency operation; (5)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance; (6)Guard ring for enhanced ruggedness and long term reliability; (7)Lead (Pb)-free (“PbF” suffix); (8)Designed and qualified for industrial level.

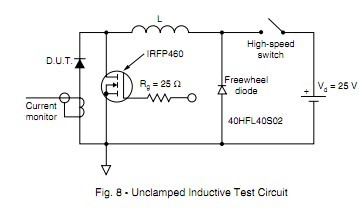

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
60CTQ150PBF
60CTQ150PBF


DIODE SCHOTTKY 150V 30A TO220AB

Data Sheet

0-1: $2.35
1-10: $2.10
10-25: $1.89
25-100: $1.72
100-250: $1.55
250-500: $1.39
500-1000: $1.18
1000-2500: $1.12
2500-5000: $1.07
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
60CTQ
60CTQ

Other


Data Sheet

Negotiable
60CTQ...PbF Series
60CTQ...PbF Series

Other


Data Sheet

Negotiable
60CTQ045
60CTQ045

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 60 Amp 45 Volt Common Cathode

Data Sheet

Negotiable
60CTQ045PBF
60CTQ045PBF


DIODE SCHOTTKY 45V 30A TO220AB

Data Sheet

0-1: $2.92
1-10: $2.61
10-25: $2.35
25-100: $2.14
100-250: $1.93
250-500: $1.73
500-1000: $1.46
1000-2500: $1.39
2500-5000: $1.33
60CTQ150
60CTQ150

Vishay Semiconductors

Schottky (Diodes & Rectifiers) 60 Amp 150 Volt Common Cathode

Data Sheet

Negotiable
60CTQ150PBF
60CTQ150PBF


DIODE SCHOTTKY 150V 30A TO220AB

Data Sheet

0-1: $2.35
1-10: $2.10
10-25: $1.89
25-100: $1.72
100-250: $1.55
250-500: $1.39
500-1000: $1.18
1000-2500: $1.12
2500-5000: $1.07
