Product Summary

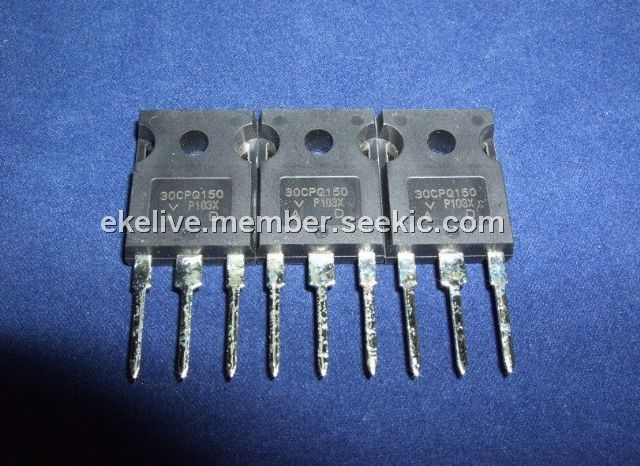

The 30CPQ150PBF center tap Schottky rectifier series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 ℃ junction temperature. Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Parametrics
30CPQ150PBF absolute maximum ratings: (1)Maximum average: 30A; (2)forward current: 15A ; (3)Maximum peak one cycle non-repetitive: 1000A; (4)surge current per leg: 340A; (5)Non-repetitive avalanche energy per leg, EAS at TJ = 25 ℃, IAS = 0.50 A, L = 90 mH: 11.25 mJ; (6)Repetitive avalanche current per leg, IAR: 0.50 A.
Features
30CPQ150PBF features: (1)175℃ TJ operation; (2)Center tap TO-247 package; (3)Low forward voltage drop; (4)High frequency operation; (5)High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance ; (6)Guard ring for enhanced ruggedness and long term reliability; (7)Lead (Pb)-free (“PbF” suffix); (8)Designed and qualified for industrial level.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
30CPQ150PBF |
DIODE SCHOTTKY 150V 15A TO247AC |
Data Sheet |
|
|
||||||||||||||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||||||||||||
30CPF |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||||
30CPF02 |
Vishay Semiconductors |
Rectifiers 200 Volt 30 Amp |
Data Sheet |
Negotiable |
|
|||||||||||||||||||||||
30CPF02PBF |
DIODE 200V 30A TO247AC |
Data Sheet |
|
|
||||||||||||||||||||||||
30CPF04 |
Vishay Semiconductors |
Rectifiers 400 Volt 30 Amp |
Data Sheet |
Negotiable |
|
|||||||||||||||||||||||
30CPF04PBF |
DIODE FAST REC 400V 30A TO247AC |
Data Sheet |
Negotiable |
|
||||||||||||||||||||||||
30CPF06 |
Vishay Semiconductors |
Rectifiers 600 Volt 30 Amp |
Data Sheet |
Negotiable |
|
