Product Summary

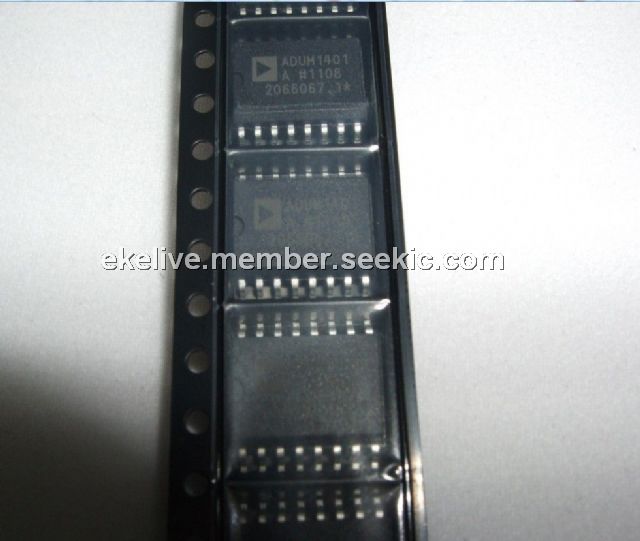

The ADUM1401ARWZ is a 4-channel digital isolator. Combining high speed CMOS and monolithic air core transformer technology, it provides outstanding performance characteristics superior to alternatives. The ADUM1401ARWZ provides four independent isolation channels in a variety of channel configurations and data rates. It operates with the supply voltage on either side ranging from 2.7 V to 5.5 V. The applications of the ADUM1401ARWZ include General-purpose multichannel isolation, SPI interface/data converter isolation, RS-232/RS-422/RS-485 transceiver and Industrial field bus isolation.
Parametrics
ADUM1401ARWZ absolute maximum ratings: (1)Storage Temperature, TST: –65 to +150℃; (2)Ambient Operating Temperature, TA: –40 to +105℃; (3)Supply Voltages, VDD1, VDD2: –0.5 to +7.0 V; (4)Input Voltage1, VIA, VIB, VIC, VID, VE1,VE2: –0.5 to VDDI + 0.5 V; (5)Output Voltage, VOA, VOB, VOC, VOD: –0.5 to VDDO + 0.5 V; (6)Average Output Current, Per Pin: Side 1, IO1: –18 to +18 mA; Side 2, IO2: –22 to +22 mA; (7)Common-Mode Transients: –100 to +100 kV/μs.
Features
ADUM1401ARWZ features: (1)Low power operation; (2)Bidirectional communication; (3)3 V/5 V level translation; (4)High temperature operation: 105℃; (5)High data rate: dc to 90 Mbps (NRZ); (6)2 ns max pulse-width distortion; (7)2 ns max channel-to-channel matching; (8)High common-mode transient immunity: >25 kV/μs; (9)Output enable function; (10)Wide body 16-lead SOIC package, Pb-free models available; (11)Safety and regulatory approvals: UL recognition: 2500 V rms for 1 minute per UL 1577; CSA component acceptance notice #5A; VDE certificate of conformity: DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01, DIN EN 60950 (VDE 0805): 2001-12; EN 60950: 2000, VIORM = 560 V peak.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADUM1401ARWZ |
|
IC DIGITAL ISOLATOR 4CH 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
|
ADUM1401ARWZ-RL |
|
IC DGITAL ISOLATOR 4CH 16-SOIC |
Data Sheet |
|
|
||||||||||||||||
