Product Summary

International Rectifiers HFA08TB60PBF is a state of the art ultra fast recovery diode. Employing the latest in epitaxial construction and advanced processing techniques it features a superb combination of characteristics which result in performance which is unsurpassed by any rectifier previously available. With basic ratings of 600 volts and 8 amps continuous current, the HFA08TB60PBF is especially well suited for use as the companion diode for IGBTs and MOSFETs. In addition to ultra fast recovery time, the HEXFRED product line features extremely low values of peak recovery current (IRRM) and does not exhibit any tendency to "snap-off" during the tb portion of recovery. The HEXFRED HFA08TB60PBF features combine to offer designers a rectifier with lower noise and significantly lower switching losses in both the diode and the switching transistor. These HEXFRED HFA08TB60PBF advantages can help to significantly reduce snubbing, component count and heatsink sizes. The HEXFRED HFA08TB60PBF is ideally suited for applications in power supplies and power conversion systems (such as inverters), motor drives, and many other similar applications where high speed, high efficiency is needed.

Parametrics

HFA08TB60PBF maximum ratings: (1)Number of Pins: 2; (2)Capacitance: 10.0 pF; (3)Current Rating: 8.00 A; (4)Forward Voltage: 1.70 V; (5)Voltage Rating (DC): 600 V; (6)Output Current: 8.00 A (max); (7)Lead-Free Status: Lead Free; (8)Mounting Type: Through Hole; (9)Packaging: Bulk; (10)Polarity: Standard; (11)RoHS: Compliant.

Features

HFA08TB60PBF absolute maximum ratings: (1)VR Cathode-to-Anode Voltage 600 V; (2)IF @ TC = 100℃ Continuous Forward Current 8.0A; (3)IFSM Single Pulse Forward Current 60A; (4)IFRM Maximum Repetitive Forward Current 24A; (5)PD @ TC = 25℃ Maximum Power Dissipation 36W; (6)PD @ TC = 100℃ Maximum Power Dissipation 14W; (7)TJ Operating Junction and TSTG Storage Temperature Range: - 55 to +150℃.

Diagrams

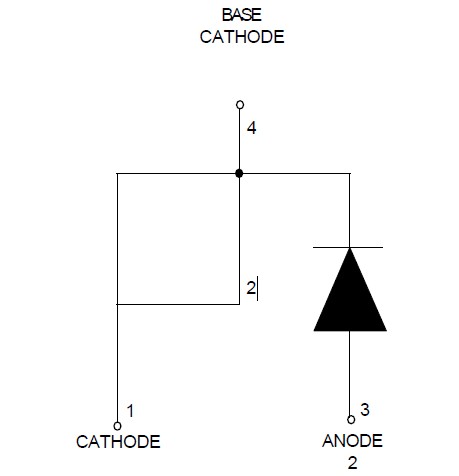

HFA08TB60PBF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
HFA08TB60PBF
HFA08TB60PBF


DIODE HEXFRED 600V 8A TO220AC

Data Sheet

0-1: $1.54
1-10: $1.40
10-25: $1.25
25-100: $1.12
100-250: $1.00
250-500: $0.87
500-1000: $0.72
1000-2500: $0.67
2500-5000: $0.65
