Product Summary
The TOP222YN is a Three-terminal Off-line PWM Switch. It extends the power range from 100W to 150W for 100/115/230 VAC input and from 50W to 90W for 85-265 VAC universal input. The TOP222YN incorporates all functions necessary for a switched mode control system into a three terminal monolithic IC: power MOSFET, PWM controller, high voltage start up circuit, loop compensation and fault protection circuitry.
Parametrics
TOP222YN absolute maximum ratings: (1)Drain Voltage: -0.3 to 700 V; (2)Drain Current Increase in 100 ns except during blanking time:0.1 x ILIMIT(MAX); (3)Control Voltage: - 0.3 V to 9 V; (5)Control Current: 100 mA; (6)Storage Temperature: -65 to 125℃; (7)Operating Junction Temperature: -40 to 150℃; (8)Lead Temperature: 260℃.
Features
TOP222YN features: (1)Lowest cost, lowest component count switcher solution; (2)Cost competitive with linears above 5W; (3)Very low AC/DC losses – up to 90% efficiency; (4)Built-in Auto-restart and Current limiting; (5)Latching Thermal shutdown for system level protection; (6)Implements Flyback, Forward, Boost or Buck topology; (7)Works with primary or opto feedback; (8)Stable in discontinuous or continuous conduction mode; (9)Source connected tab for low EMI; (10)Circuit simplicity and Design Tools reduce time to market.

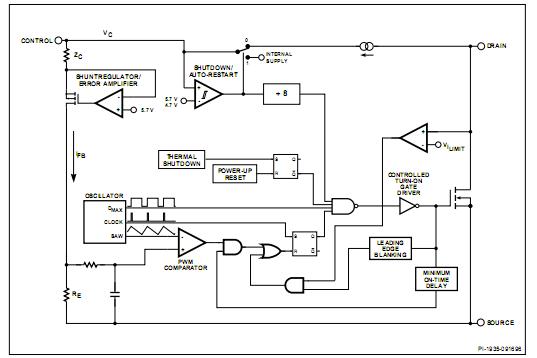

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TOP222YN |
Power Integrations |
AC/DC Switching Converters 15W 85-265 VAC 25W100/115/230 VAC |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
TOP200-14 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TOP200-4 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TOP200YAI |
Power Integrations |
AC/DC Switching Converters 5-12W 85-265 VAC 10-25W100/115/230VAC |
Data Sheet |
Negotiable |
|
|||||||||||||
TOP200YN |
Power Integrations |
AC/DC Switching Converters 5-12W 85-265 VAC 10-25W100/115/230VAC |
Data Sheet |
Negotiable |
|
|||||||||||||
TOP201YAI |
Power Integrations |
AC/DC Switching Converters 0-22W 85-265 VAC 20-45W100/115/230VAC |
Data Sheet |
Negotiable |
|
|||||||||||||
TOP201YN |
Power Integrations |
AC/DC Switching Converters 0-22W 85-265 VAC 20-45W100/115/230VAC |
Data Sheet |
Negotiable |
|
