Product Summary
The TDA7386 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package designed for high end car radio applications. Thanks to the fully complementary PNP/NPN output configuration the TDA7386 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets.
Parametrics
TDA7386 absolute maximum ratings: (1)VCC Operating Supply Voltage: 18 V; (2)VCC (DC) DC Supply Voltage: 28 V; (3)VCC (pk) Peak Supply Voltage (t = 50ms): 50 V; (4)IO Output Peak Current: Repetitive (Duty Cycle 10% at f = 10Hz): 4.5A. Non Repetitive (t = 100ms): 5.5A; (5)Ptot Power dissipation, (Tcase = 70℃): 80 W; (6)Tj Junction Temperature: 150 ℃; (7)Tstg Storage Temperature: – 55 to 150 ℃.
Features
TDA7386 features: (1)High output power capability: 4 x 45W/4W MAX. 4 x 40W/4W EIAJ. 4 x 28W/4W @ 14.4V, 1KHz, 10%. 4 x 24W/4W @ 13.2V, 1KHz, 10%; (2)Low distortion; (3)Low output noise; (4)ST-BY function; (5)Mute function; (6)Automute at min. supply voltage detection; (7)Low external component count: internally fixed GAIN (26dB). No external compensation. no bootstrap capacitors.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|

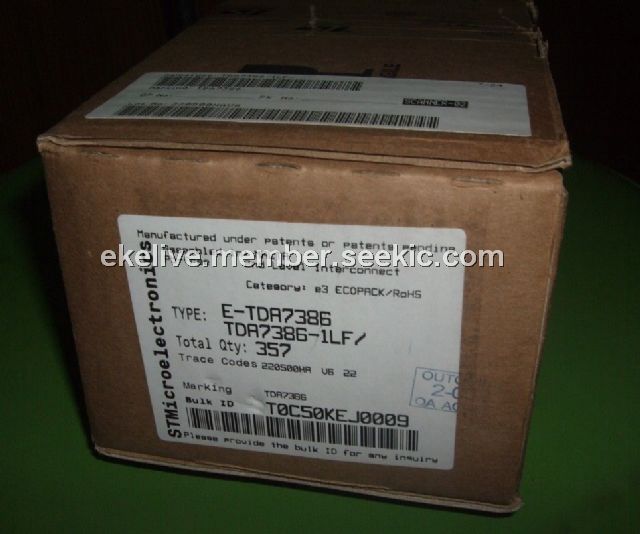

TDA7386 |
STMicroelectronics |
Audio Amplifiers 4X40W Quad Brdg Amp |
Data Sheet |
Negotiable |
|
|||||
