Product Summary
The NUD4001DR2G is a High Current LED Driver, which is designed to replace discrete solutions for driving LEDs in low voltage AC-DC applications 5.0 V, 12 V or 24 V. An external resistor allows the circuit designer to set the drive current for different LED arrays.
Parametrics
NUD4001DR2G absolute maximum ratings: (1)Continuous Input Voltage: 30 V; (2)Non.repetitive Peak Input Voltage (t ≤ 1.0 ms): 60 V; (3)Output Current (For Vdrop ≤ 2.2 V): 500 mA; (4)Output Voltage: 28 V; (5)Human Body Model (HBM): 1000 V.
Features
NUD4001DR2G features: (1)Supplies Constant LED Current for Varying Input Voltages; (2)External Resistor Allows Designer to Set Current-up to 500 mA; (3)Offered in Surface Mount Package Technology (SO-8); (4)Pb-Free Package is Available.

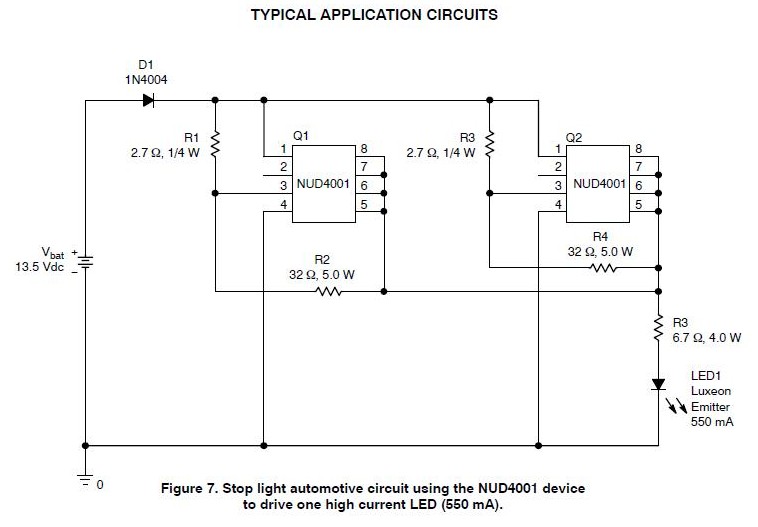

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NUD4001DR2G |
ON Semiconductor |
LED Lighting Drivers MI 60V LED DRVR TR |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
NUD4001DEVB |
ON Semiconductor |
LED Lighting Development Tools NUD4001 EVAL BRD |
Data Sheet |
|
|
||||||||||||
|
NUD4001DR2 |
ON Semiconductor |
LED Lighting Drivers High Current LED |
Data Sheet |
Negotiable |
|
||||||||||||
|
NUD4001DR2G |
ON Semiconductor |
LED Lighting Drivers MI 60V LED DRVR TR |
Data Sheet |
|
|
||||||||||||
|
NUD4011DR2 |
ON Semiconductor |
LED Lighting Drivers Low Current LED |
Data Sheet |
Negotiable |
|
||||||||||||
|
NUD4011DR2G |
ON Semiconductor |
LED Lighting Drivers MI LO CUR LED DRVR |
Data Sheet |
|
|
||||||||||||
 |
NUD4021 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
