Product Summary

The IRF8010PBF is a HEXFET Power MOSFET. It has some applications like High frequency DC-DC converters, UPS and Motor Control, Lead-Free.

Parametrics

IRF8010PBF absolute maximum ratings: (1)ID @ TC = 25℃ , Continuous Drain Current, VGS @ 10V: 80A; (2)ID @ TC = 100℃ , Continuous Drain Current, VGS @ 10V: 57A; (3)IDM, Pulsed Drain Current: 320A; (4)PD @TC = 25℃, Power Dissipation, 260W; Linear Derating Factor: 1.8 W/℃ ; (5)VGS: Gate-to-Source Voltage: ±20V; (6)dv/dt, Peak Diode Recovery dv/dt: 16V/ns; (7)TJ,TSTG, Operating Junction and Storage Temperature Range: -55 to 175℃ .

Features

IRF8010PBF features: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design, (See App. Note AN1001); (3)Fully Characterized Avalanche Voltage and Current; (4)Typical RDS(on)= 12mΩ.

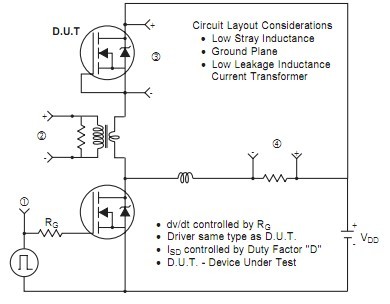

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

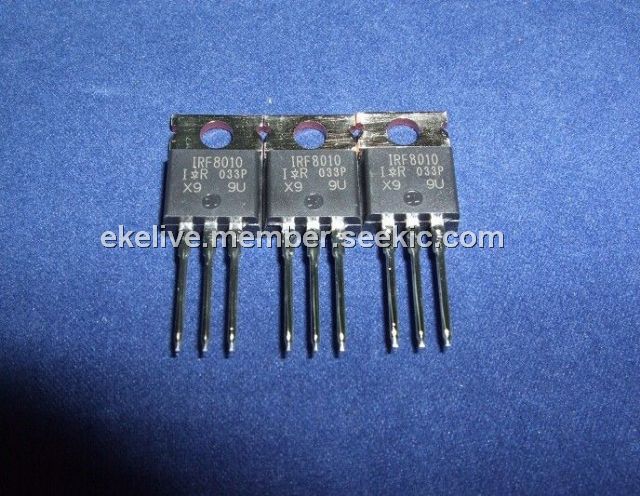

IRF8010PBF
IRF8010PBF

International Rectifier

MOSFET MOSFT 100V 80A 15mOhm 81nC

Data Sheet

0-1: $2.27
1-25: $1.47
25-100: $1.07
100-250: $1.00
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IRF8010
IRF8010

Other


Data Sheet

Negotiable
IRF8010LPBF
IRF8010LPBF

International Rectifier

MOSFET N-CH 100V 80A TO-262-3

Data Sheet

1-300: $0.78
IRF8010PBF
IRF8010PBF

International Rectifier

MOSFET MOSFT 100V 80A 15mOhm 81nC

Data Sheet

0-1: $2.27
1-25: $1.47
25-100: $1.07
100-250: $1.00
IRF8010S
IRF8010S

Other


Data Sheet

Negotiable
IRF8010SPBF
IRF8010SPBF

International Rectifier

MOSFET

Data Sheet

0-1: $1.83
1-25: $1.25
25-100: $0.92
100-250: $0.89
IRF8010STRLPBF
IRF8010STRLPBF

International Rectifier

MOSFET MOSFT 100V 80A 15mOhm 81nC

Data Sheet

0-1: $2.32
1-25: $1.58
25-100: $1.18
100-250: $1.13
