Product Summary

The H11L1M 6-Pin DIP Optocoupler has a high speed integrated circuit detector optically coupled to a gallium-arsenide infrared emitting diode. The output incorporates a Schmitt trigger, which provides hysteresis for noise immunity and pulse shaping. The detector circuit of the H11L1M is optimized for simplicity of operation and utilizes an open collector output for maximum application flexibility. The applications of the H11L1M include: (1)Logic to logic isolator; (2)Programmable current level sensor; (3)Line receiver-eliminate noise and transient problems; (4)A.C. to TTL conversion-square wave shaping; (5)Digital programming of power supplies; (6)Interfaces computers with peripherals.

Parametrics

H11L1M absolute maximum ratings: (1)TSTG, Storage Temperature: -40 to +150 ℃; (2)TOPR, Operating Temperature: -40 to +85 ℃; (3)TSOL, Lead Solder Temperature: 260 for 10 sec ℃; (4)PD, Total Device Power Dissipation @ 25℃: 250 mW; Derate Above 25℃: 2.94 mW/℃.

Features

H11L1M features: (1)High data rate, 1MHz typical (NRZ); (2)Free from latch up and oscilliation throughout voltage and temperature ranges; (3)Microprocessor compatible drive; (4)Logic compatible output sinks 16mA at 0.4V maximum; (5)Guaranteed on/off threshold hysteresis; (6)Wide supply voltage capability, compatible with all popular logic systems; (7)Underwriters Laboratory (UL) recognized—file #E90700, Volume 2; (8)VDE recognized – File#102497 – Add option V (e.g., H11LIVM).

Diagrams

H11L1M schematic diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

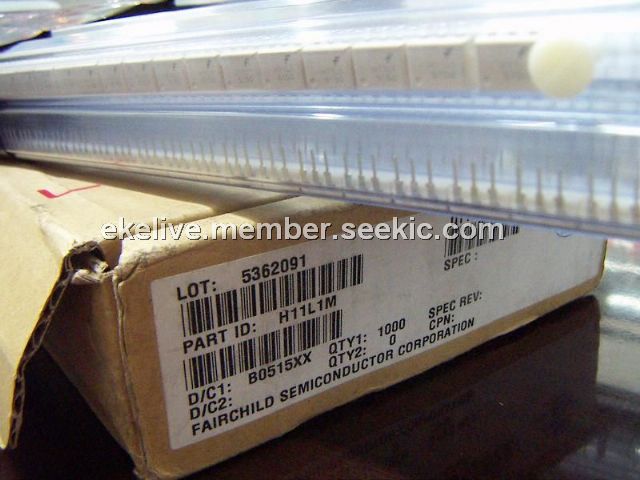

H11L1M
H11L1M
Fairchild Semiconductor
Logic Output Optocouplers Optocoupler LC Schmitt Trigger
Data Sheet
0-1: $0.59
1-25: $0.52
25-100: $0.42
100-250: $0.36
H11L1M_F132
H11L1M_F132
Fairchild Semiconductor
Logic Output Optocouplers Schmitt Trigger Output
Data Sheet
Negotiable
H11L1M-V
H11L1M-V
Everlight
Logic Output Optocouplers Optocouplers
Data Sheet
0-1: $0.49
1-50: $0.40
50-100: $0.35
100-500: $0.26
