Product Summary

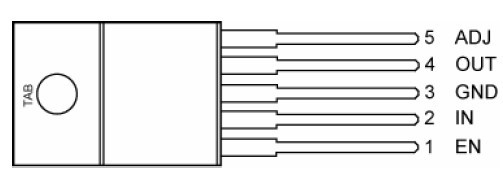

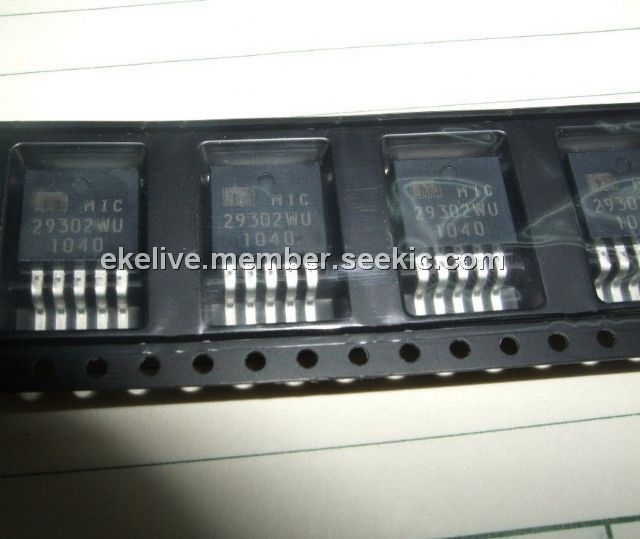

The MIC29302WU-ADJ is a high current, high accuracy, low-dropout voltage regulator. Using Micrel proprietary Super beta PNP process with a PNP pass element, the regulator features 350mV to 425mV (full load) typical dropout voltages and very low ground current. Its applications: Battery powered equipment, High-efficiency Green computer systems, Automotive electronics, High-efficiency linear lower supplies, High-efficiency lost-regulator for switching supply.

Parametrics

MIC29302WU-ADJ absolute maximum ratings: (1)Input Supply Voltage (VIN): –20V to +60V; (2)Enable Input Voltage (VEN): –0.3V to VIN; (3)Lead Temperature (soldering, 5sec.): 260℃; (4)Power Dissipation: Internally Limited; (5)Storage Temperature Range: –65℃ to +150℃.

Features

MIC29302WU-ADJ features: (1)Low dropout voltage; (2)Low ground current; (3)Accurate 1% guaranteed tolerance; (4)Extremely fast transient response; (5)Reverse battery and Load Dump protection; (6)Zero current shutdown mode (5-pin versions); (7)Error flag signals output out-of-regulation (5-pin versions); (8)Also characterized for smaller loads with industry leading performance specifications; (9)Fixed voltage and adjustable versions.
