Product Summary
The X5045PZ is a CPU Supervisor with 4K SPI EEPROM. The X5045PZ combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the device activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The Watchdog Timer of the X5045PZ provides an independent protection mechanism for microcontrollers. When the microcontroller fails to restart a timer within a selectable time out interval, the device activates the RESET/RESET signal. The user selects the interval from three preset values. Once selected, the interval does not change, even after cycling the power.
Parametrics
X5045PZ absolute maximum ratings: (1)Temperature under bias: –65℃ to +135℃; (2)Storage temperature: –65℃ to +150℃; (3)Voltage on any pin with; (4)respect to VSS: –1.0V to +7V; (5)D.C. output current: 5mA; (6)Lead temperature (soldering, 10 seconds): 300℃.
Features
X5045PZ features: (1)Selectable time out watchdog timer; (2)Low VCC detection and reset assertion; (3)Long battery life with low power consumption; (4)2.7V to 5.5V and 4.5V to 5.5V power supply versions; (5)4Kbits of EEPROM-M write cycle endurance; (6)Save critical data with Block Lock TM memory; (7)Built-in inadvertent write protection; (8)3.3MHz clock rate; (9)Minimize programming time; (10)SPI modes (0,0 & 1,1); (11)Available packages.

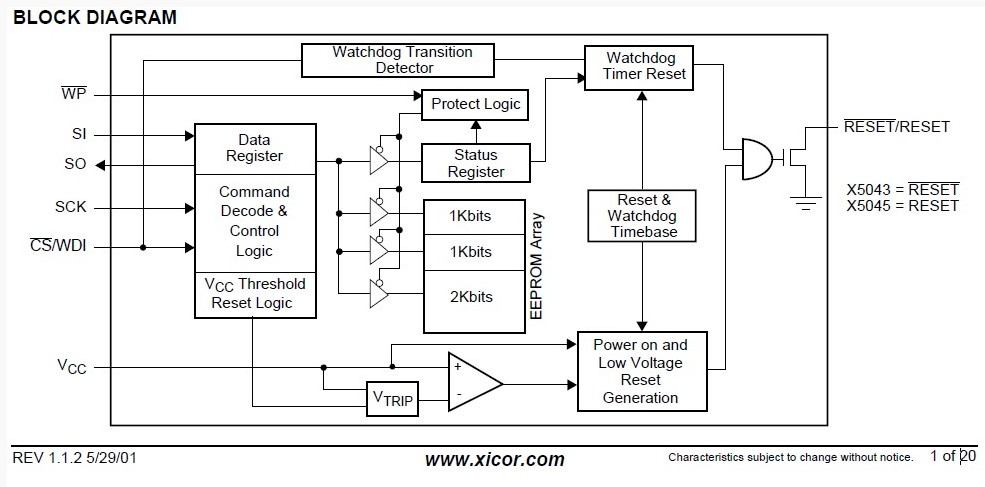

Diagrams
