Product Summary

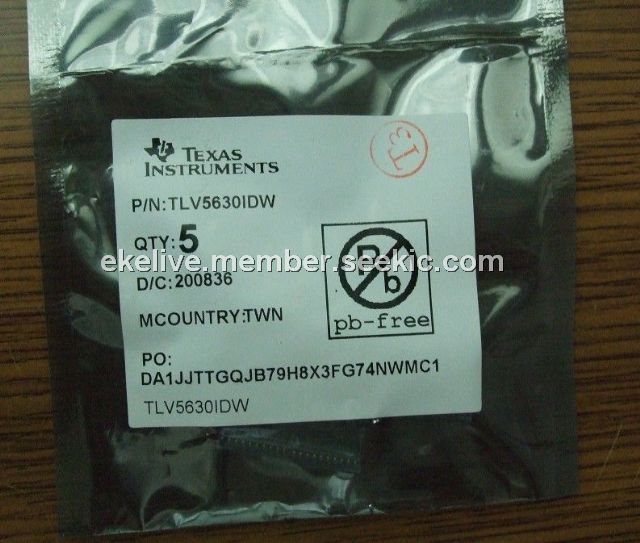

The TLV5630IDW is a pin-compatible, eight-channel, 12bit voltage output DAC with a flexible serial interface. The serial interface allows glueless interface to TMS320 and SPI, QSPI, and Microwire serial ports. The TLV5630IDW is programmed with a 16-bit serial string containing 4 control and 12 data bits. Additional features are a power-down mode, an LDAC input for simultaneous update of all eight DAC outputs, and a data output which can be used to cascade multiple devices, and an internal programmable band-gap reference. The applications of the TLV5630IDW include: (1)Digital Servo Control Loops; (2)Digital Offset and Gain Adjustment; (3)Industrial Process Control; (4)Machine and Motion Control Devices; (5)Mass Storage Devices.
Parametrics
TLV5630IDW absolute maximum ratings: (1)Supply voltage, (AVDD, DVDD to GND): 7 V; (2)Reference input voltage range: - 0.3 V to AVDD + 0.3; (3)Digital input voltage range: - 0.3 V to DVDD + 0.3; (4)Operating free-air temperature range, TA: -40℃ to 85℃; (5)Storage temperature range, Tstg: -65℃ to 150℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV5630IDW features: ((1)Eight Voltage Output DACs in One Package: 12-Bit; 1 μs in Fast Mode; 3 μs in Slow Mode; (2)Programmable Settling Time vs Power Consumption: 1 μs in Fast Mode; 3 μs in Slow Mode; 18 mW in Slow Mode at 3 V; 48 mW in Fast Mode at 3 V; (3)Compatible With TMS320 and SPI Serial Ports; (4)Monotonic Over Temperature; (5)Low Power Consumption: 18 mW in Slow Mode at 3 V; 48 mW in Fast Mode at 3 V; (6)Power-Down Mode; (7)Internal Reference; (8)Data Output for Daisy-Chaining.

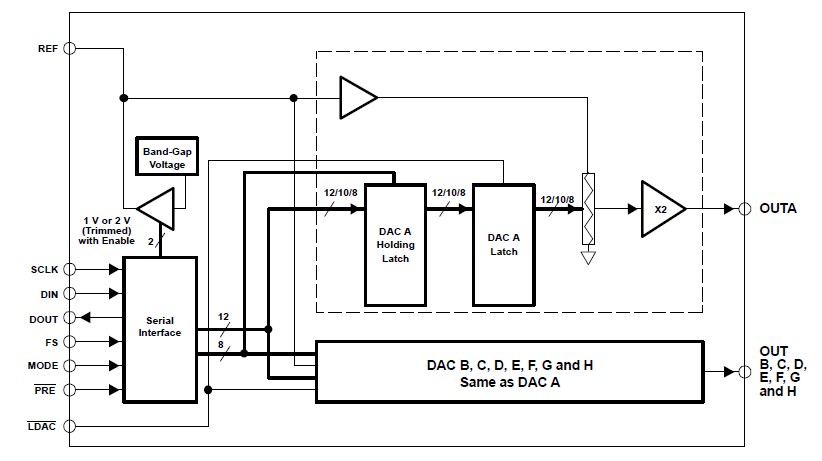

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV5630IDW |
Texas Instruments |
DAC (D/A Converters) 12bit 8Chl DAC |
Data Sheet |
|
|
||||||||||||
|
TLV5630IDWG4 |
Texas Instruments |
DAC (D/A Converters) 2.7V to 5.5V 12-Bit 8-Ch Ser W/Int Ref |
Data Sheet |
|
|
||||||||||||
|
TLV5630IDWRG4 |
Texas Instruments |
DAC (D/A Converters) 2.7V to 5.5V 12-Bit 8-Ch Ser W/Int Ref |
Data Sheet |
Negotiable |
|
||||||||||||
|
TLV5630IDWR |
Texas Instruments |
DAC (D/A Converters) 2.7V to 5.5V 12-Bit 8-Ch Ser W/Int Ref |
Data Sheet |
Negotiable |
|
||||||||||||
