Product Summary
The ST4202T-R is a Laminated Transformer. It features in Low Frequency, Open-Style Laminated, Split Bobbin.
Parametrics
ST4202T-R specifications: (1)Transformer Type RF Transformer; (2)DCR Primary Side Max 900mOhm; (3)Lead Style Gull Wing; (4)Pin Count 16; (5)Mounting Style Surface Mount; (6)High Potential 1500Vrms; (7)Interwinding Capacitance Max 9/7pF; (8)Product Length (mm) 11.61mm; (9)Product Height (mm) 5.91mm; (10)Product Depth (mm) 6.6mm; (11)Turns Ratio 1CT:1CT/1CT:2CT; (12)Primary Side Inductance 120/20uH; (13)Secondary Side Inductance 18/45uH; (14)DCR Secondary Side Max 900mOhm.
Features
ST4202T-R features: (1)High (2500V) isolation; 2500VRMS HIPOT; (2)Non-concentric design - eliminates ESS; (3)No crossover between primary/secondary winding leads; (4)Vacuum impregnated - withstands board washing systems and reduces audible noise; (5)Baked resin provides an environmentally-resistant finish; (6)Rugged construction - no additional mounting hardware; (7)Universal design, fits industry-standard footprints; (8)Available in single or dual primary.

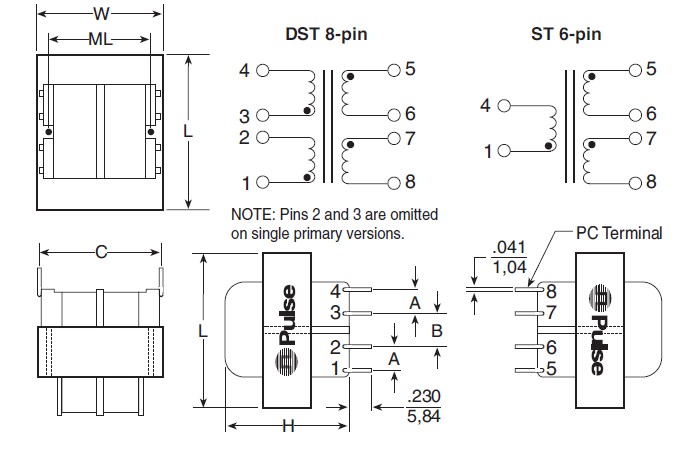

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ST4202T-R |
Pulse |
Transformers Audio & Signal XFMR |
Data Sheet |
Negotiable |
|
||||||||||||
