Product Summary

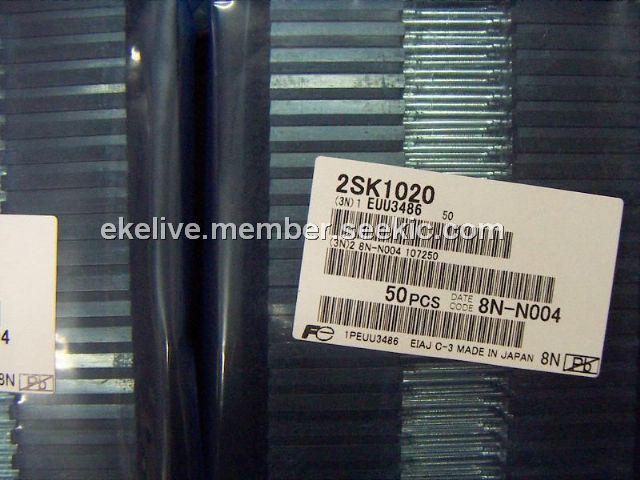

The 2SK1020 is a N-channel silicon power MOSFET. The applications of the 2SK1020 include switching regulators, UPS, DC-DC converters, general purpose power amplifier.

Parametrics

2SK1020 absolute maximum ratings: (1)Drain-source voltage: 500 V; (2)Continuous drain current: 30 A; (3)Pulsed drain current: 92 A; (4)Gate-source voltage: 30 V; (5)Non-repetitive Avalanche current: ±30 A; (6)Maximum Avalanche Energy: 300 mJ; (7)Max. power dissipation: 300 W; (8)Operating and storage temperature range: 150 ℃.

Features

2SK1020 features: (1)High speed switching; (2)Low on-resistance; (3)No secondary breadown; (4)Low driving power; (5)high voltage; (6)VGSS=±30 V guarantee.

Diagrams

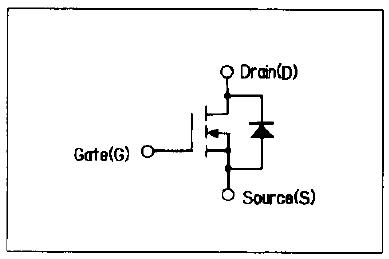

2SK1020 equivalent circuit schematic diagram
