Product Summary

The NRF24LE1-F16Q32-R7 is a member of the low-cost, high-performance nRF24 family of intelligent 2.4 GHz RF Transceiver with embedded Microcontrollers. The NRF24LE1-F16Q32-R7 is optimized to provide a single chip solu- tion for ULP wireless applications.

Parametrics

NRF24LE1-F16Q32-R7 absolute maximum ratings: (1)Supply voltages: - 0.3V to + 3.6V, VSS:0V; (2)Input voltage, For analog pins, AIN0 to AIN7 and AREF: - 0.3V to 2.0 V, For all other pins:- 0.3V to VDD + 0.3V; (3)Output voltage: - 0.3V to VDD + 0.3V; (4)Total Power Dissipation:60mW; (5)Operating Temperature:- 40℃ to + 85℃; (6)Storage Temperature:- 40℃ to + 125℃.

Features

NRF24LE1-F16Q32-R7 features: (1)nRF2401 2.4GHz RF transceiver; (2)8051 compatible micro-controller; (3)compatible with nRF24E2; (4)9 input 10 bit ADC 100kSPS; (5)Single 1.9V to 3.6V supply; (6)Internal voltage regulators; (7)2 μA standby with wakeup on timer; (8)or external pin; (9)Internal VDD monitoring; (10)Supplied in 36 pin QFN (6x6mm); (11)package; (12)0.18μm CMOS technology; (13)Mask programmable version available; (14)Low Bill- of Material; (15)Ease of design.

Diagrams

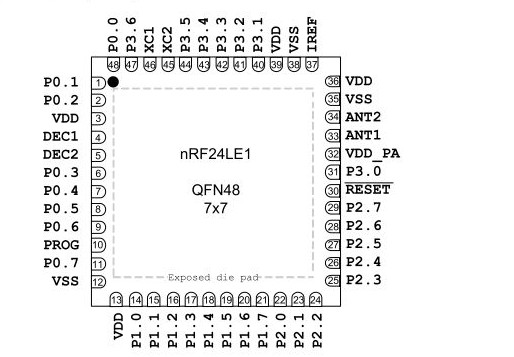

NRF24LE1-F16Q32-R7 pin configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
nRF24LE1-F16Q32-R7
nRF24LE1-F16Q32-R7
Nordic Semiconductor
RF Transceiver 2.4GHz RF TRNSCVR W/ EMB MCU & 10BIT ADC
Data Sheet
0-1165: $1.80
1165-1500: $1.80
