Product Summary
The SI2301DS is a P-Channel 1.25-W, 2.5-V MOSFET.
Parametrics
SI2301DS absolute maximum ratings: (1)Drain-Source Voltage VDS: -20V; (2)Gate-Source Voltage VGS: ±8V; (3)Continuous Drain Current (TJ = 150℃) ID: TA= 25℃ -2.3V; TA= 70℃ -1.5A; (4)Pulsed Drain Currenta IDM: -10A; (5)Continuous Source Current (Diode Conduction)b IS: -1.6A; (6)Operating Junction and Storage Temperature Range TJ, Tstg:-55 to 150 ℃; (7)Power Dissipationb PD: TA= 25℃ 1.25 w; TA= 70℃ 0.8W.
Features
SI2301DS features: (1)VDS (V): -20; (2) rDS(on)(Ω): 0.130 @ VGS = - 4.5 V; 0.190 @ VGS = - 2.5 V; (3)ID (A): -2.3; -1.9.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 Si2301DS |
Other |
|
Data Sheet |
Negotiable |
|
||||
|

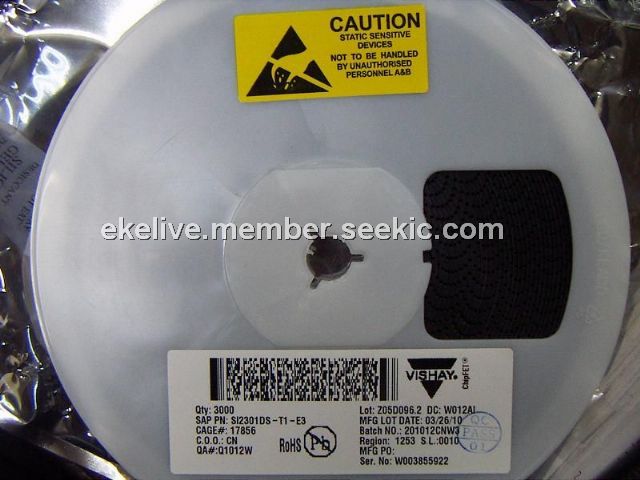

SI2301DS-T1 |
Vishay/Siliconix |
MOSFET 20V 2.3A 1.25W |
Data Sheet |
Negotiable |
|
||||
