Product Summary

The IRFB23N15DPBF is a HEXFET Power MOSFET. Applications include: High frequency DC-DC converters, Lead-Free.

Parametrics

IRFB23N15DPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 23 A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 17 A; (3)IDM, Pulsed Drain Current: 92 A; (4)PD @TA = 25℃, Power Dissipation: 3.8 W; (5)PD @TC = 25℃, Power Dissipation: 136 W; (6)Linear Derating Factor: 0.9 W/℃; (7)VGS Gate-to-Source Voltage: ±30 V; (8)dv/dt Peak Diode Recovery: 4.1V/ns; (9)TJ, TSTG, Operating Junction and Storage Temperature Range: -55 to 175 ℃; (10)Soldering Temperature for 10 seconds: 300℃; (11)Mounting Torque, 6-32 or M3 Screw: 1.1N·m.

Features

IRFB23N15DPBF benefits: (1)Low Gate-to-Drain Charge to Reduce Switching Losses; (2)Fully Characterized Capacitance Including Effective COSS to Simplify Design; (3)Fully Characterized Avalanche Voltage and Current.

Diagrams

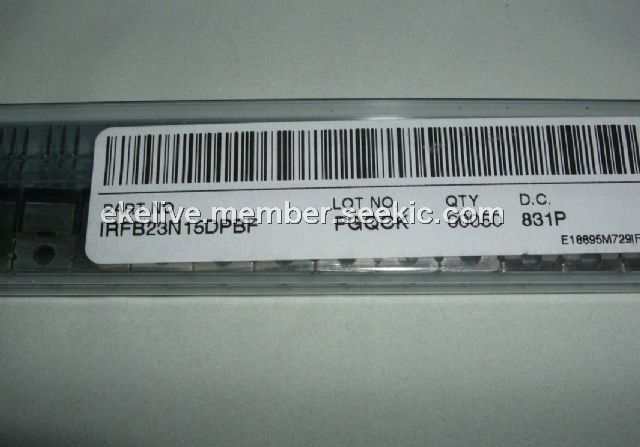

IRFB23N15DPBF diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
IRFB23N15DPBF
IRFB23N15DPBF
International Rectifier
MOSFET MOSFT 150V 23A 90mOhm 37nC
Data Sheet
0-1: $1.97
1-25: $1.27
25-100: $0.92
100-250: $0.86
