Product Summary
The 2SA1693 is a Silicon PNP Epitaxial Planar Transistor. It is used in Audio and General Purpose.
Parametrics
2SA1693 absolute maximum ratings: (1)VCBO: -80V; (2)VCEO: -80V; (3)VEBO: -6V; (4)IC: -6A; (5)IB: -3A; (6)PC: 60(TC=25℃)W; (7)Tj: 150℃; (8)Tstg: -55 to +150℃.
Features
2SA1693 electrical characteristics: (1)ICBO: -10max μA; (2)IEBO: -10max μA; (3)V(BR)CEO: -80min V; (4)hFE: 50min; (5)VCE(sat): -1.5max V; (6)fT: 20typ MHz; (7)COB: 150typ pF.

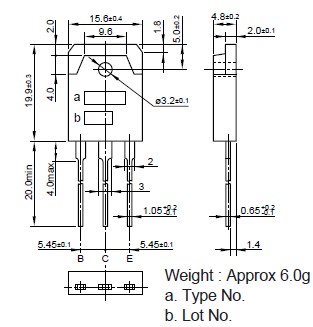

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2SA1693 |
Other |
|
Data Sheet |
Negotiable |
|
||||
