2N6028

Programmable Unijunction Transistor, TO-92, 5.33mm Body Height, Low On-state Voltage

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.10~2.00

PartNumber:: 2N6028

Brand:: ON Semiconductor - ON | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James Blunt's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-16

From Other Seller

Part Number:2N6028
US $0.10 - 2.00
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
MJ16018

US $1.80 - 2.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

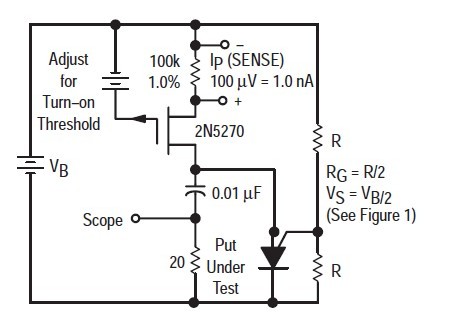

The 2N6028 is a programmable unijunction transistor. It is designed to enable the engineer to program unijunction characteristics such as RBB, h, IV, and IP by merely selecting two resistor values. Application includes thyristor–trigger, oscillator, pulse and timing circuits. The 2N6028 may also be used in special thyristor applications due to the availability of an anode gate. Supplied in an inexpensive TO–92 plastic package for high–volume requirements, this package is readily adaptable for use in automatic insertion equipment.

Parametrics

2N6028 absolute maximum ratings: (1)Power Dissipation, Derate Above 25℃, PF: 300mW; 1/qJA: 4.0mW/℃; (2)DC Forward Anode Current, Derate Above 25℃, IT: 150mA; 2.67mA/℃; (3)DC Gate Current IG: 50 mA; (4)Repetitive Peak Forward Current. ITRM: 1.0Amps; 2.0Amps; (5)Non–Repetitive Peak Forward Current, 10 ms Pulse Width, ITSM: 5.0 Amps; (6)Gate to Cathode Forward Voltage VGKF: 40 Volts; (7)*Gate to Cathode Reverse Voltage VGKR: -5.0 Volts; (8)*Gate to Anode Reverse Voltage VGAR: 40 Volts; (9)*Anode to Cathode Voltage(1) VAK: -40 Volts; (10)Operating Junction Temperature Range TJ: –50 to +100℃; (11)*Storage Temperature Range Tstg: –55 to +150℃.

Features

2N6028 features: (1)Programmable RBB, h, IV and IP; (2)Low On-state Voltage 1.5 Volts Maximum @ IF = 50 mA; (3)Low Gate to Anode Leakage Current: 10 nA Maximum; (4)High Peak Output Voltage- 11 Volts Typical; (5)Low Offset Voltage-0.35 Volt Typical (RG = 10 k ohms); (6)Device Marking: Logo, Device Type, e.g., 2N6027, Date Code.
