Product Summary

The X9C103SIZT1 is an Intersil digitally controlled (XDCP) potentiometer. The device consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The wiper position is controlled by a three-wire interface.

Parametrics

X9C103SIZT1 absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on CS, INC, U/D and VCC with respect to VSS: -1V to +7V; (4)Voltage on VH/RH and VL/RL referenced to VSS: -8V to +8V; (5)ΔV = |VH/RH - VL/RL|: 10 V; (6)Lead temperature (soldering, 10 seconds): +300℃; (7)IW (10 seconds): 8.8mA; (8) Power Rating: 10 mW.

Features

X9C103SIZT1 features: (1)Solid-state potentiometer; (2)3-wire serial interface; (3)100 wiper tap points: wiper position stored in nonvolatile memory and recalled on power-up; (4)99 resistive elements: temperature compensated, end to end resistance, ±20%, terminal voltages, ±5V; (5)Low power CMOS: VCC = 5V, active current, 3mA max., standby current, 750μA max; (6) HIgh reliability; (7) 10KΩ; (8)Packages: 8 Ld SOIC, 8 Ld PDIP; (9) Pb-Free Available (RoHS Compliant).

Diagrams

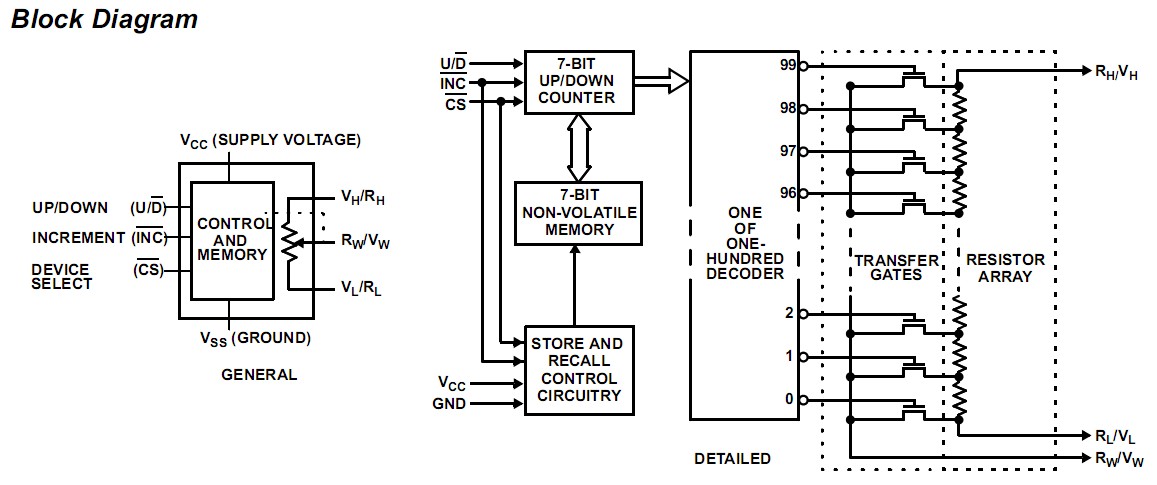

X9C103SIZT1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
X9C103SIZT1
X9C103SIZT1


IC POT DGTL CONTROL 10KOHM 8SOIC

Data Sheet

0-1: $3.36
1-25: $2.73
25-100: $2.32
