Product Summary
The X5045S8IZT1 is a CPU Supervisor with 4K SPI EEPROM. The device combines four popular functions, Poweron Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package. This combination lowers system cost, reduces board space requirements, and increases reliability. Applying power to the X5045S8IZT1 activates the power on reset circuit which holds RESET/RESET active for a period of time. This allows the power supply and oscillator to stabilize before the processor executes code. The applications of the X5045S8IZT1 include: Communications Equipment: Routers, Hubs, Switches, Set Top Boxes; Industrial Systems: Process Control, Intelligent Instrumentation; Computer Systems: Desktop Computers, Network Servers; Battery Powered Equipment.
Parametrics
X5045S8IZT1 absolute maximum ratings: (1)Temperature under bias: –65℃ to +135℃; (2)Storage temperature: –65℃ to +150℃; (3)Voltage on any pin with respect to VSS: –1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃.
Features
X5045S8IZT1 features: (1)Low VCC Detection and Reset Assertion; (2)Selectable Time Out Watchdog Timer; (3)Long Battery Life with Low Power Consumption; (4)4Kbits of EEPROM-1M Write Cycle Endurance; (5)Save Critical Data with Block Lock Memory; (6)Built-in Inadvertent Write Protection; (7)SPI Interface - 3.3MHz Clock Rate; (8)Minimize Programming Time; (9)Pb-Free Plus Anneal Available.

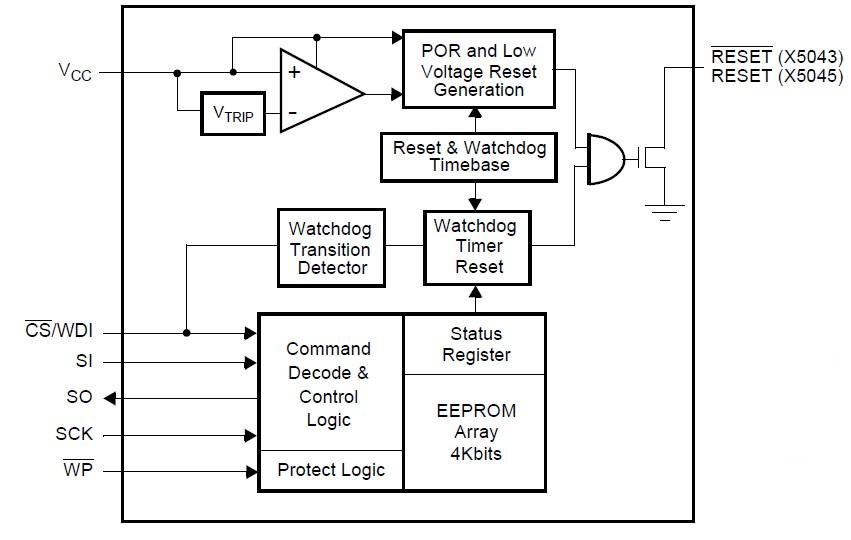

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
X5045S8IZT1 |
IC SUPERVISOR CPU 4K EE 8-SOIC |
Data Sheet |
|
|
||||||||
