Product Summary
The X5045PIZ is a CPU Supervisor with 4K SPI EEPROM. It combines four popular functions, Power-on Reset Control, Watchdog Timer, Supply Voltage Supervision, and Block Lock Protect Serial EEPROM Memory in one package.
Parametrics
X5045PIZ absolute maximum ratings: (1)Temperature under bias: -65℃ to +135℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on any pin with respect to VSS: -1.0V to +7V; (4)D.C. output current: 5mA; (5)Lead temperature (soldering, 10 seconds): 300℃; (6)Temperature: Commercial: 0℃ to +70℃; Industrial: -40℃ to +85℃.
Features
X5045PIZ features: (1)Low VCC Detection and Reset Assertion; (2)Selectable Time Out Watchdog Timer; (3)Long Battery Life with Low Power Consumption; (4)4Kbits of EEPROM Write Cycle Endurance; (5)Built-in Inadvertent Write Protection; (6)SPI Interface -Clock Rate; (7)Minimize Programming Time; (8)Pb-Free Plus Anneal Available (RoHS Compliant).

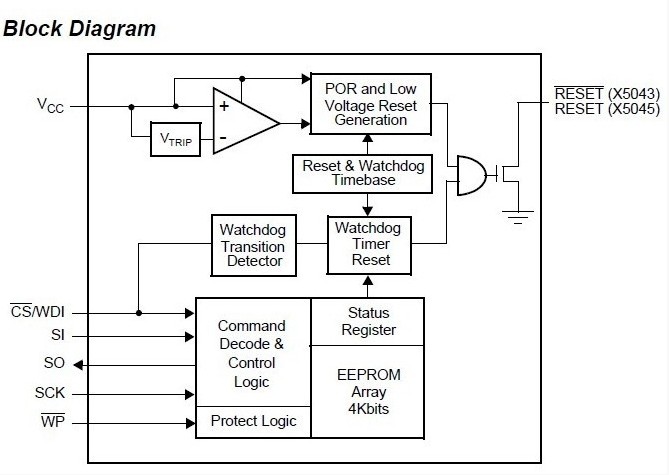

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
X5045PIZ |
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
|
|
||||||||
X5045PIZ-2.7 |
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
|
|
||||||||
X5045PIZ-2.7A |
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
|
|
||||||||
X5045PIZ-4.5A |
IC SUPERVISOR CPU 4K EE 8-DIP |
Data Sheet |
|
|
