Product Summary
The TLC5510INSR is a CMOS, 8-bit, 20MSPS analog-to-digital converter (ADC) that utilizes a semiflash architecture. The TLC5510INSR operates with a single 5V supply and typically consume only 130 mW of power. The applications of the TLC5510INSR include digital TV, medical Imaging, video Conferencing, high-Speed Data conversion, QAM Demodulators and so on.
Parametrics
TLC5510INSR absolute maximum ratings: (1)Supply voltage, VDDA, VDDD: 7V; (2)Reference voltage input range, VREFT, VREFB: AGND to VDDA; (3)Analog input voltage range, VI(ANLG): AGND to VDDA; (4)Digital input voltage range, VI(DGTL): DGND to VDDD; (5)Digital output voltage range, VO(DGTL): DGND to VDDD; (6)Operating free-air temperature range, TA: –20℃ to 75℃; (7)Storage temperature range, Tstg: –55℃ to 150℃.
Features
TLC5510INSR features: (1)Analog Input Range; (2)8-Bit Resolution; (3)Integral Linearity Error; (4)Differential Linearity Error; (5)Maximum Conversion Rate; (6)5-V Single-Supply Operation; (7)Low Power Consumption; (8)TLC5510 is Interchangeable With Sony CXD1175.

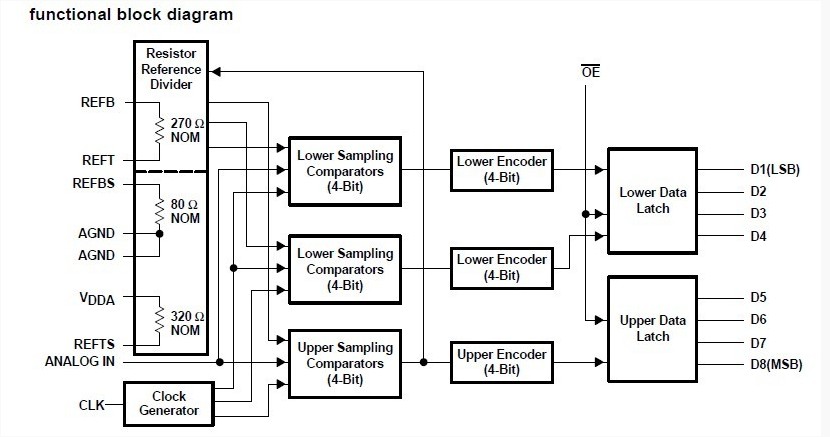

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLC5510INSR |
Texas Instruments |
ADC (A/D Converters) 8bit 20Msps 1ch 5V |
Data Sheet |
|
|
||||||||
|
TLC5510INSRG4 |
Texas Instruments |
ADC (A/D Converters) 8-Bit 20 MSPS 1-Ch Internal S&H Lo Pwr |
Data Sheet |
|
|
||||||||
