Product Summary
The STC12LE5202A is a High Performance 8051 Micorcontroller.
Parametrics
STC12LE5202A specifications: (1)Working Voltage 3.6-2.2; (2)Max Working Freq 35MHz; (3)Flash Rom 2K Bytes; (4)SRAM 256 Bytes; (5)Timer 4; (6)UART 1; (7)PWM 2; (8)A/D Converter NO; (9)Number of IO Pins 15; (10)Watch Dog Yes; (11)Internal Reset Yes; (12)EEPROM 2K; (13)Low Voltage Interrupt Yes; (14)Internal Configurable Reset Voltage Yes; (15)Wake-up External Interrupts 6; (16)Low Polwer Wake-up Timer No; (17)Pakcage LSSOP-20; (18)Working Temperature 0-85C.
Features
STC12LE5202A features: (1)Enhanced 80C51 core; (2)In-circuit programming via serial port; (3)1 clock cycle per instruction; (4)Build-in unique ID for every chip; (5)Dual Data Pointer (DPTR); (6)Internal reset; (7)Internal RC oscillator; (8)Ultra safe code protection technology; (9)Low power (<0.1μA @ Power Down); (10)4KV EFT and 20KV ESD Protection.

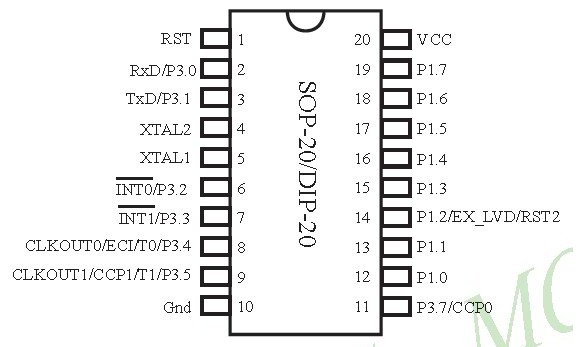

Diagrams
 |
