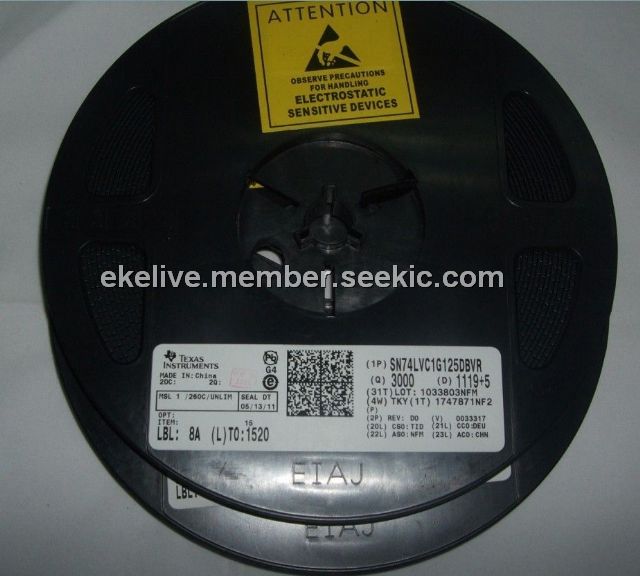

SN74LVC1G125DBVR

single bus buffer gate, 1.65V to 5.5V, ±24mA, SOT235, 3-state output

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.01~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.01~1.00

PartNumber:: SN74LVC1G125DBVR

Brand:: Texas Instruments - TI | Pack: SOT | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. James Blunt's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-12-26

From Other Seller

Part Number:SN74LVC1G125DBVR
US $0.01 - 1.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
CM300DY-12NF

US $63.00 - 80.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The SN74LVC1G125DBVR is a single bus buffer gate with 3-state output. It is designed for 1.65V to 5.5V VCC operation. The output is disabled when the output-enable(OE) input is high. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. The SN74LVC1G125DBVR is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Parametrics

SN74LVC1G125DBVR absolute maximum ratings: (1)VCC Supply voltage range: –0.5 to 6.5 V; (2)VI Input voltage range: –0.5 to 6.5 V; (3)VO Voltage range applied to any output in the high-impedance or power-off state: –0.5 to 6.5 V; (4)VO Voltage range applied to any output in the high or low state: –0.5 to VCC + 0.5 V; (5)IIK Input clamp current VI < 0: –50 mA; (6)IOK Output clamp current VO < 0: –50 mA; (7)IO Continuous output current: ±50 mA; (8)Continuous current through VCC or GND: ±100 mA; (9)θJA Package thermal impedance DRL package: 142 ℃/W; (10)Tstg Storage temperature range: –65 to 150 ℃.

Features

SN74LVC1G125DBVR features: (1)Available in the Texas Instruments NanoFree Package; (2)Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II; (3)Supports 5-V VCC Operation; (4)ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A); 200-V Machine Model (A115-A); 1000-V Charged-Device Model (C101); (5)Inputs Accept Voltages to 5.5 V; (6)Max tpd of 3.7 ns at 3.3 V; (7)Low Power Consumption, 10μA Max ICC; (8)±24-mA Output Drive at 3.3 V; (9)Ioff Supports Partial-Power-Down Mode Operation.
