Product Summary

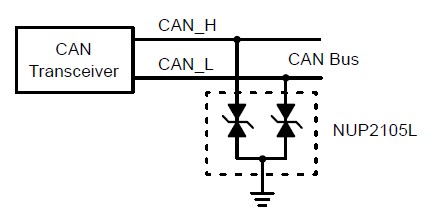

The NUP2105LT1G is a dual line CAN bus protector. It has been designed to protect the CAN transceiver in high-speed and fault tolerant networks from ESD and other harmful transient voltage events. The NUP2105LT1G provides bidirectional protection for each data line with a single compact SOT-23 package, giving the system designer a low cost option for improving system reliability and meeting stringent EMI requirements. The applications of the NUP2105LT1G include: Industrial Control Networks: Smart Distribution Systems (SDS), DeviceNet; Automotive Networks: Low and High-Speed CAN, Fault Tolerant CAN.

Parametrics

NUP2105LT1G absolute maximum ratings: (1)PPK Peak Power Dissipation 8 × 20μs Double Exponential Waveform: 350W; (2)TJ Operating Junction Temperature Range: -40 to 125 ℃; (3)TJ Storage Temperature Range: -55 to 150 ℃; (4)TL Lead Solder Temperature (10 s): 260 ℃; (5)ESD Human Body model (HBM): 16kV; Machine Model (MM): 400V; IEC 61000.4.2 Specification (Contact): 30kV.

Features

NUP2105LT1G features: (1)350 W Peak Power Dissipation per Line (8 x 20 μsec Waveform); (2)Low Reverse Leakage Current (< 100 nA); (3)Low Capacitance High-Speed CAN Data Rates; (4)IEC Compatibility: - IEC 61000-4-2 (ESD): Level 4; - IEC 61000-4-4 (EFT): 40 A - 5/50 ns; - IEC 61000-4-5 (Lighting) 8.0 A (8/20 μs); (5)ISO 7637-1, Nonrepetitive EMI Surge Pulse 2, 9.5 A(1 x 50 μs); (6)ISO 7637-3, Repetitive Electrical Fast Transient (EFT)EMI Surge Pulses, 50 A (5 x 50 ns); (7)Flammability Rating UL 94 V-0; (8)Pb-Free Packages are Available.
