Product Summary

The EL2480CSZ-T13 is a quad current-feedback operational amplifier which achieves a -3dB bandwidth of 250MHz at a gain of +1 while consuming only 3mA of supply current per amplifier. It will operate with dual supplies ranging from ±1.5V to ±6V, or from single supplies ranging from +3V to +12V. In spite of its low supply current, the EL2480CSZ-T13 can output 55mA while swinging to ±4V on ±5V supplies. These attributes make the EL2480CSZ-T13 an excellent choice for low power and/or low voltage cable-driver, HDSL, or RGB applications.

Parametrics

EL2480CSZ-T13 absolute maximum ratings: (1)Supply Voltage between VS+ and GND: +12.6V; (2)Voltage between VS+ and VS-: +12.6V; (3)Common-Mode Input Voltage: VS- to VS+; (4)Differential Input Voltage: ±6V; (5)Current into +IN or -IN: ±7.5mA; (6)Internal Power Dissipation: See Curves; (7)Operating Ambient Temperature Range: -40 to +85℃; (8)Operating Junction Temperature, Plastic Packages: 150℃; (9)Output Current: ±60mA; (10)Storage Temperature Range: -65 to +150℃.

Features

EL2480CSZ-T13 features: (1)Quad topology; (2)3mA supply current (per amplifier); (3)250MHz -3dB bandwidth; (4)Low cost; (5)Single- and dual-supply operation down to ±1.5V; (6)0.05%/0.05° diff. gain/diff. phase into 150Ω; (7)1200V/μs slew rate; (8)Large output drive current - 55mA; (9)Also available with disable in triple; (10)Pb-Free plus Anneal available (RoHS compliant).

Diagrams

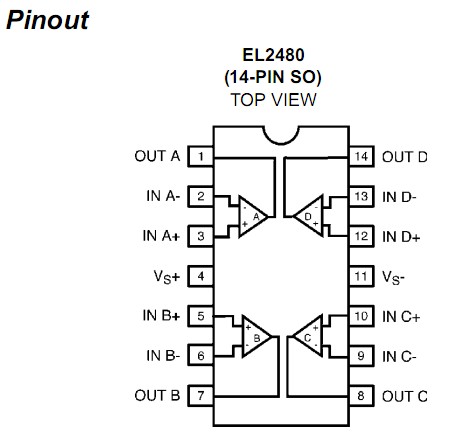

EL2480CSZ-T13 pinout

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
EL2480CSZ-T13
EL2480CSZ-T13


IC OPAMP QUAD 250MHZ/3MA 14-SOIC

Data Sheet

Negotiable
