Product Summary

The 2SA1244-Y is a TOSHIBA transistor.

Parametrics

2SA1244-Y absolute maximum ratings: (1)collector-base voltage: -60 V; (2)collector-emitter voltage: -50 V; (3)emitter-base voltage: -5 V; (4)collector current: -5 A; (5)base current: -1 A; (6)collector power dissipation: 1.0 W; (7)junction temperature: 150 ℃; (8)storage temperature range: -55 to 150 ℃.

Features

2SA1244-Y features: (1)low collextor saturation voltage: VCE(sat)=-0.4 V max at IC=-3 A; (2)high speed switching time: tstg=1.0 μs typ; (3)complementary to 2SC3074.

Diagrams

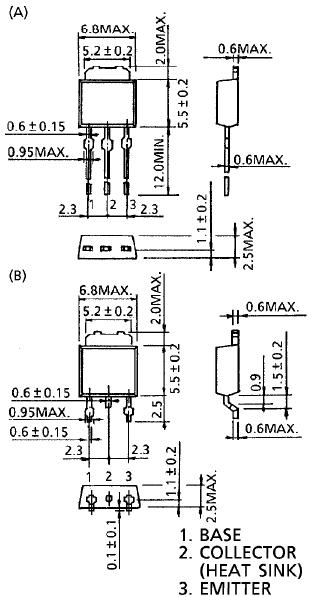

2SA1244-Y diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
2SA1244-Y(Q)
2SA1244-Y(Q)

Toshiba

Transistors Bipolar (BJT) PNP 50V 5A Transistor

Data Sheet

Negotiable
