Product Summary
The MURS160T3G is a surface mount ultrafast power rectifier. The MURS160T3G is ideally suited for high voltage, high frequency rectification, or as free wheeling and protection diodes in surface mount applications where compact size and weight are critical to the system.
Parametrics
MURS160T3G absolute maximum ratings: (1)Peak Repetitive Reverse Voltage VRRM; Working Peak Reverse Voltage VRWM DC Blocking Voltage VR: 600 V; (2)Average Rectified Forward Current IF(AV): 1.0 A @ TL = 150℃; 2.0 A @ TL = 125℃; (3)Non.Repetitive Peak Surge Current(Surge applied at rated load conditions halfwave, single phase, 60 Hz)IFSM: 35 A; (4)Operating Junction Temperature TJ: -65 to +175 ℃.
Features
MURS160T3G features: (1)Pb-Free Packages are Available; (2)Small Compact Surface Mountable Package with J-Bend Leads; (3)Rectangular Package for Automated Handling; (4)High Temperature Glass Passivated Junction; (5)Low Forward Voltage Drop (0.71 to 1.05 Volts Max @ 1.0 A, TJ = 150℃).

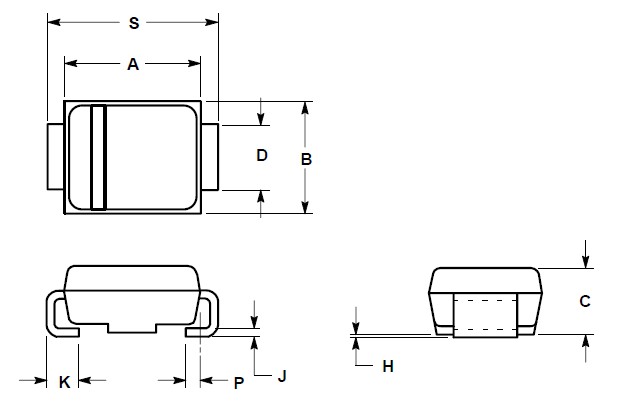

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

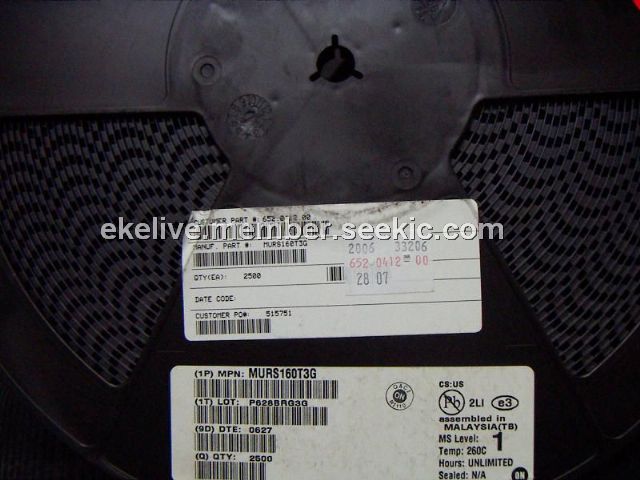

MURS160T3G |
ON Semiconductor |
Rectifiers 600V 1A Ultrafast |
Data Sheet |
|
|
|||||||||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
MURS105T3 |
ON Semiconductor |
Rectifiers 50V 1A Ultrafast |
Data Sheet |
Negotiable |
|
|||||||||||||
MURS105T3G |
ON Semiconductor |
Rectifiers 50V 1A Ultrafast |
Data Sheet |
|
|
|||||||||||||
MURS110T3 |
ON Semiconductor |
Rectifiers 100V 1A Ultrafast |
Data Sheet |
Negotiable |
|
|||||||||||||
MURS110T3G |
ON Semiconductor |
Rectifiers 100V 1A Ultrafast |
Data Sheet |
|
|
|||||||||||||
MURS115T3 |
ON Semiconductor |
Rectifiers 150V 1A Ultrafast |
Data Sheet |
Negotiable |
|
|||||||||||||
MURS115T3G |
ON Semiconductor |
Rectifiers 150V 1A Ultrafast |
Data Sheet |
|
|
