Product Summary
The MOC3052S is a 6-pin DIP random-phase optoisolator triac driver. It consists of a GaAs infrared LED optically coupled to a non–Zero–crossing silicon bilateral AC switch (triac). The MOC3052S Series isolates low voltage logic from 115 and 240 Vac lines to provide random phase control of high current triacs or thyristors. The MOC3052S Series features greatly enhanced static dv/dt capability to ensure stable switching performance of inductive loads.
Parametrics
MOC3052S absolute maximum ratings: (1)Reverse Voltage: 3 Volts; (2)Forward Current — Continuous: 60 mA; (3)Total Power Dissipation @ TA = 25℃: 100 mW; (4)Negligible Power in Triac Driver Derate above 25℃: 1.33 mW/℃; (5)Off–State Output Terminal Voltage: 600 Volts; (6)Peak Repetitive Surge Current (PW = 100 ms, 120 pps): 1 A; (7)Total Power Dissipation @ TA = 25℃: 300 mW, Derate above 4 mW/℃.
Features
MOC3052S features: (1)Reverse Leakage Current (VR = 3 V): 0.05 to 100 μA; (2)Forward Voltage (IF = 10 mA): 1.15 to 1.5 Volts; (3)Peak Blocking Current, Either Direction (Rated VDRM) @ IFT per device: 10 to 100 nA; (4)Peak On–State Voltage, Either Direction (ITM = 100 mA Peak): 1.7 to 2.5 Volts; (5)Critical Rate of Rise of Off–State Voltage @ 400 V (Refer to test circuit): 1000 V/ms.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MOC3052S |
Lite-On |
Triac & SCR Output Optocouplers Optocoupler TRIAC |
Data Sheet |
|
|
||||||||||||
 |
MOC3052SM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 600V Optocoupler Random Phase Triac |
Data Sheet |
|
|
||||||||||||
|
MOC3052SR2M |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 600V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
|
|
||||||||||||
|
MOC3052SR2VM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 600V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
|
|
||||||||||||
|
MOC3052SR2M_F132 |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Random Phase Triac Output FSS |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3052SM_F132 |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers Random Phase Triac Output |
Data Sheet |
Negotiable |
|
||||||||||||
|
MOC3052SVM |
Fairchild Semiconductor |
Triac & SCR Output Optocouplers 6Pin 600V Optocoupl Rand Phs Triac Drvr |
Data Sheet |
|
|
||||||||||||
|

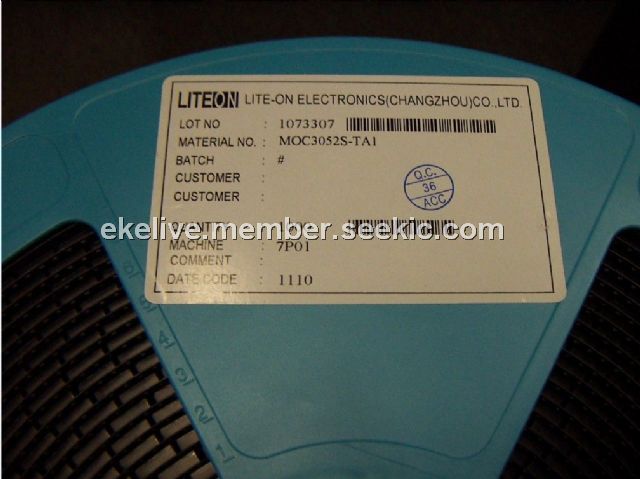

MOC3052S-TA1 |
Lite-On |
Triac & SCR Output Optocouplers Optocoupler TRIAC |
Data Sheet |
|
|
||||||||||||
