Product Summary
The LM337T is a 3-terminal negative adjustable regulator. It supplies in excess of 1.5A over an output voltage range of -1.2V to - 37V. The LM337T requires only two external resistor to set the output voltage. Included on the chip are current limiting, thermal overload protection and safe area compensation.
Parametrics
LM337T absolute maximum ratings: (1)Input-Output Voltage Differential |VI - VO|: 40 V; (2)Power Dissipation PD: Internally limited W; (3)Operating Temperature Range TOPR: 0 to +125 ℃; (4)Storage Temperature Range TSTG: -65 to +125 ℃.
Features
LM337T features: (1)Output current in excess of 1.5A; (2)Output voltage adjustable between -1.2V and - 37V; (3)Internal thermal overload protection; (4)Internal short circuit current limiting; (5)Output transistor safe area compensation; (6)Floating operation for high voltage applications; (7)Standard 3-pin TO-220 package.

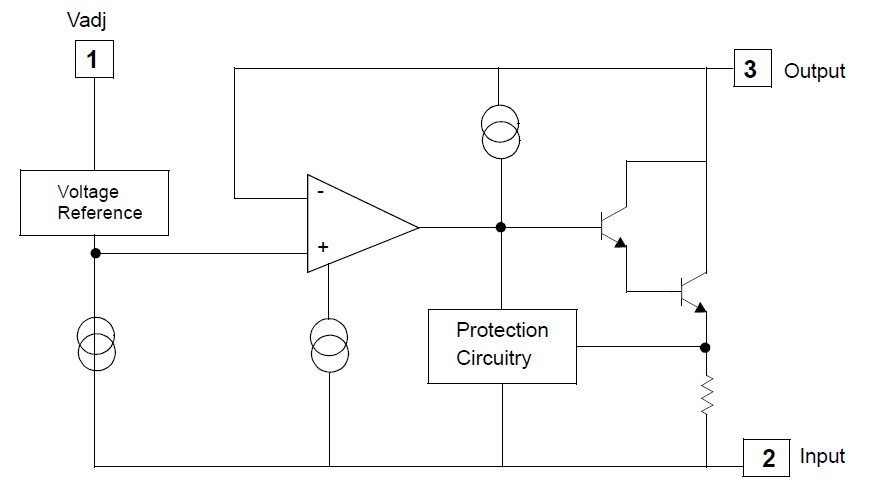

Diagrams
